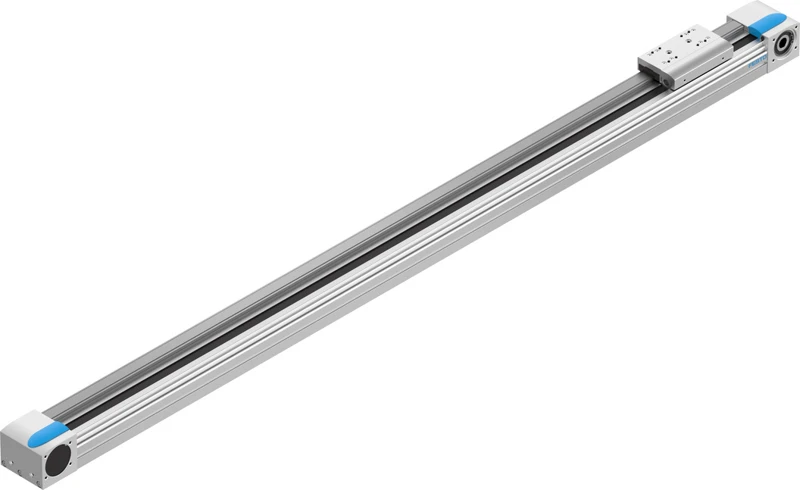

Toothed belt axis, EGC-80-1200-TB-KF-0H-GK
SKU: 3013359
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axes EGC-TB-KF, with recirculating ball bearing guide
• Effective diameter of drive pinion 28.65 mm
• Working stroke 1200 mm
• Size 80
• Stroke reserve 0 mm
• Toothed-belt pitch 3 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With toothed belt
• Type of motor Stepper motor, Servo motor
• Symbol 00991212
• Max. acceleration 50 m/s²
• Max. speed 5 m/s
• Repetition accuracy ±0.08 mm
• Max. feed force Fx 350 N
Buy currently uses Select Automation shop pricing and checkout.
Toothed belt axis EGC-TB
• The heavy-duty toothed belt axis EGC-TB has a unique, optimised cross section for maximum rigidity and load bearing capacity.
• This dynamic linear drive can achieve high speeds even with large loads and long strokes.
• Axis for high speeds and acceleration
• Recirculating ball bearing guide for high loads and torques
• Optionally with clamping unit, at one or both ends
• Profile with optimised rigidity
• The motor can be flexibly mounted on 4 sides
• 22 types in stock with short delivery times and modular products for custom variants
• Long strokes of up to 8.5 m possible
