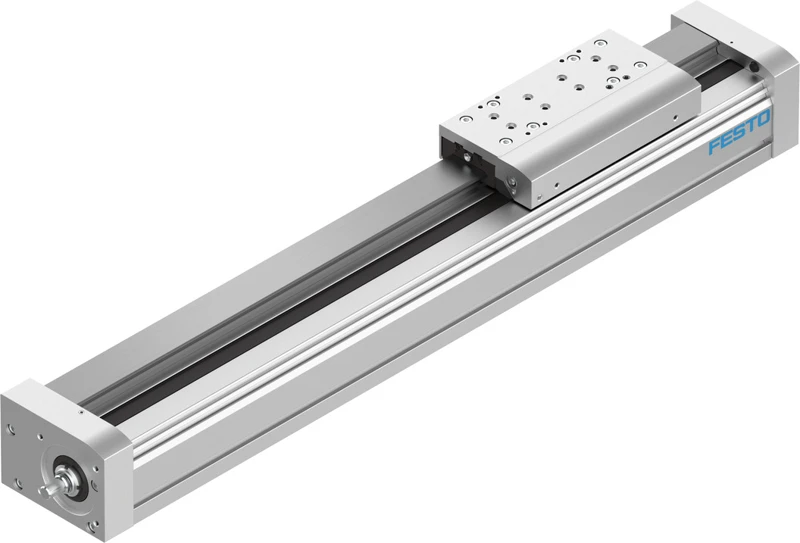

Spindle axis, EGC-120-500-BS-25P-KF-0H-ML-GK
SKU: 3013582
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Spindle axes EGC-BS-KF, with recirculating ball bearing guide
• Motor attachment position: left, Standard slide
• Size 120
• Max. feed force Fx 1500 N
• Repetition accuracy ±0.02 mm
• Working stroke 500 mm
• Stroke reserve 0 mm
• Spindle diameter 25 mm
• Spindle pitch 25 mm/U
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With ball screw
• Type of motor Stepper motor, Servo motor
• Spindle type Ball screw
Buy currently uses Select Automation shop pricing and checkout.
Spindle axis EGC-BS
• The heavy-duty, precise spindle axis EGC-BS is quiet in operation and has a unique cross-section that is optimised for maximum rigidity and load bearing capacity.
• This means you can often use these spindle axes in a smaller size, thus reducing your costs.
• Axis for high repeat accuracy
• Recirculating ball bearing guide for high loads and torques
• Optionally with clamping unit, at one or both ends
• Profile with optimised rigidity
• The motor can be flexibly mounted on 2 sides
• 34 types in stock with short delivery times and modular products for custom variants
• Strokes of up to 3 m possible
