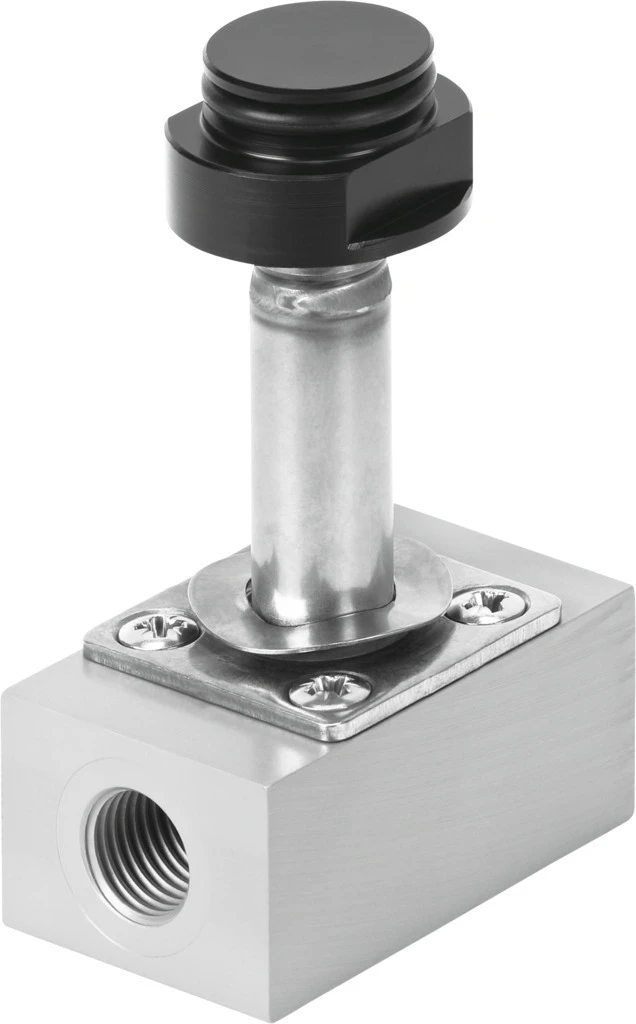

Valve, VOFD-L12T-M32-MN-G14-8-F19A
SKU: 3014556
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valve VOFD
• Valve function 3/2-way, closed, monostable
• Type of actuation Electric
• Construction width 50 mm
• Standard nominal flow rate (standardised to DIN 1343) 52 l/min
• Pneumatic working port G1/4
• Operating pressure 0 MPa ... 0.8 MPa
• Operating pressure 0 bar ... 8 bar
• Operating pressure 0 psi ... 116 psi
• Design Directly actuated poppet valve
• Type of reset Mechanical spring
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VOFD
• Directly controlled pilot valve for particularly demanding operating conditions.
• Redundant version for safety-related systems up to SIL3.
• Suitable for process automation in the chemical and petrochemical industries
• Suitable for outdoor use under harsh ambient conditions
• Especially suitable for quarter turn actuators thanks to NAMUR flange pattern
• Variants with safety functions
• Variants to EU Explosion Protection Directive (ATEX)
