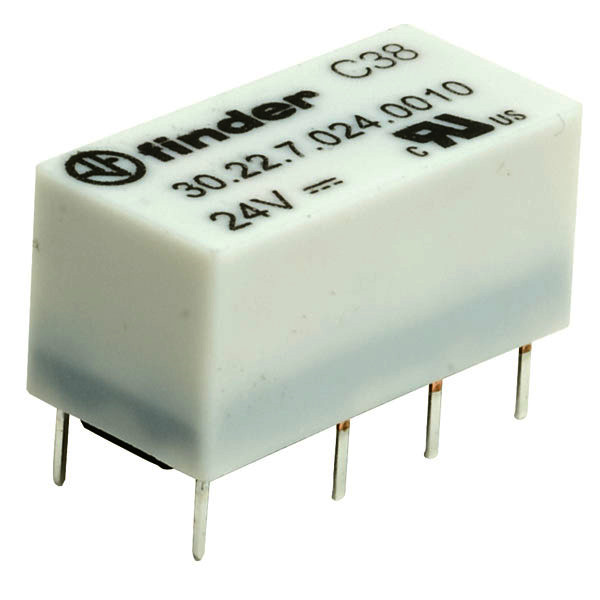

2A 2 CHANGEOVER SEALED DIL PCB RELAY 24VDC
SKU: 302270240010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Relays mounted on PCBs:
Sub-miniature low-profile relay with 32 series.
Tighten up: RT III.
Delicate DC coil: two-pole changeover connections, 200 mW.
Low-level switchable ability.
Cadmium No-cost contact materials.
Sub miniature: - DIL packaging that is industry standard.
Buy currently uses Select Automation shop pricing and checkout.
SERIES 30:
SWITCH CURRENT: 2A.
DESCRIPTION: Sealed DIL PCB relay
CONTACT: 2 changeovers
PIN PITCH: 5.08 mm.
COIL VOLTAGE: 24 VDC
DIMENSIONS (MM): 11.4 x 20.3 x 10.1
