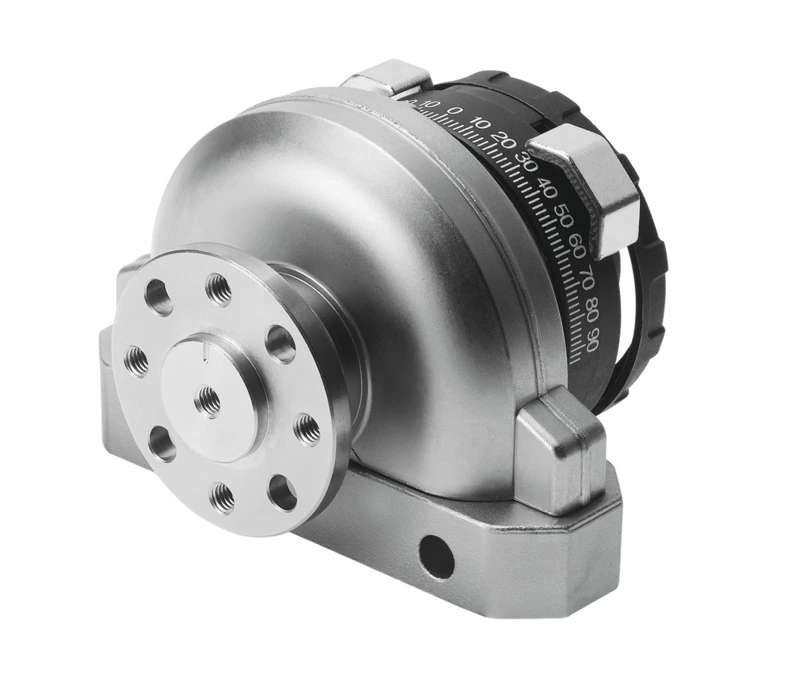

Semi-rotary drive, DSRL-12-180-P-FW
SKU: 30654
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Semi-rotary drives DSR/DSRL, DSRL-...-P-FW, With hollow flanged shaft
• Size 12
• Cushioning angle 2.2 deg
• Rotation angle adjustment range 0 deg ... 180 deg
• Swivel angle 0 deg ... 180 deg
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Double-acting
• Design Vane
• Position detection Without
• Theoretical torque at 0.6 MPa (6 bar, 87 psi) 1 Nm
Buy currently uses Select Automation shop pricing and checkout.
Semi-rotary drive, metric DSR
• Rotary vane drive with direct transmission to the drive shaft in a half-shell housing.
• Semi-rotary vane drive
• With spigot or hollow flanged shaft
• The modern alternative is the semi-rotary drive DRVS
