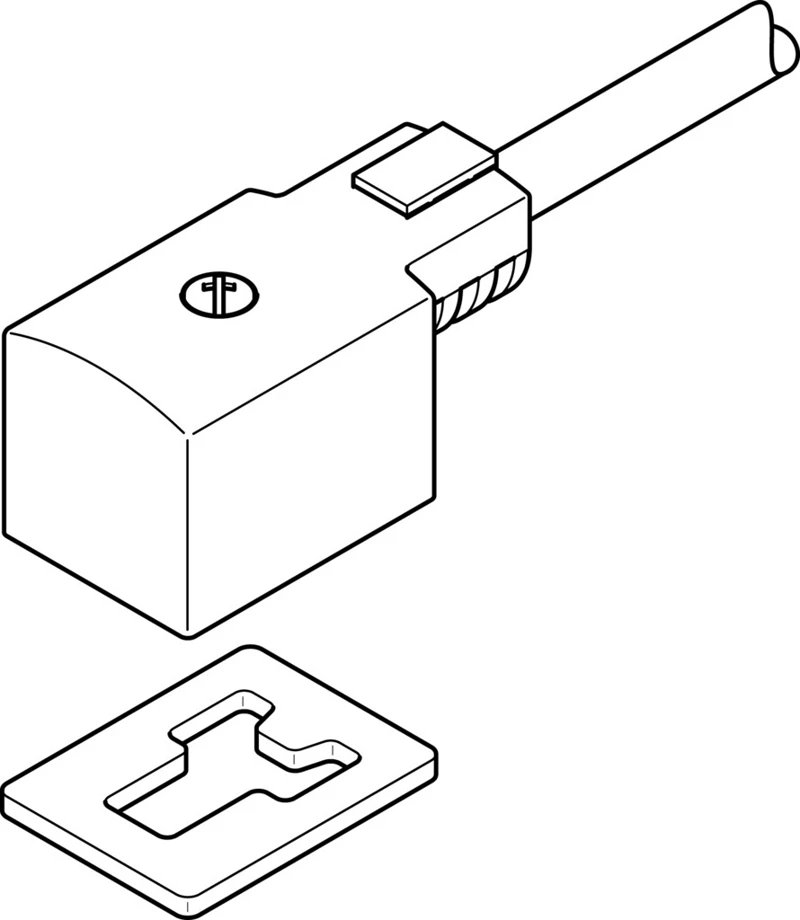

Plug socket with cable, KMV-1-230AC-2.5
SKU: 30940
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Plug socket with cable KMV
• Type of mounting On solenoid valve via M3 central screw
• Mounting position optional
• Product weight 170 g
• Electrical connection Socket,Type B
• Nominal operating voltage AC 230 V
• Reverse polarity protection For all electrical connections
• Protective conductor connection Available
• Cable length 2.5 m
• Cable diameter 6 mm
• Cable structure 3 x 0.75 mm²
• Degree of protection IP67 To IEC 60529
• Ambient temperature -20 °C ... 80 °C
Buy currently uses Select Automation shop pricing and checkout.
Plug socket with cable KMV
• For solenoid coils with plug pattern type B according to EN 175301-803
• For V solenoid coils
• With PVC cable
• Cable length 2.5 … 10 m
• Ambient temperature -20 ... +80 °C
