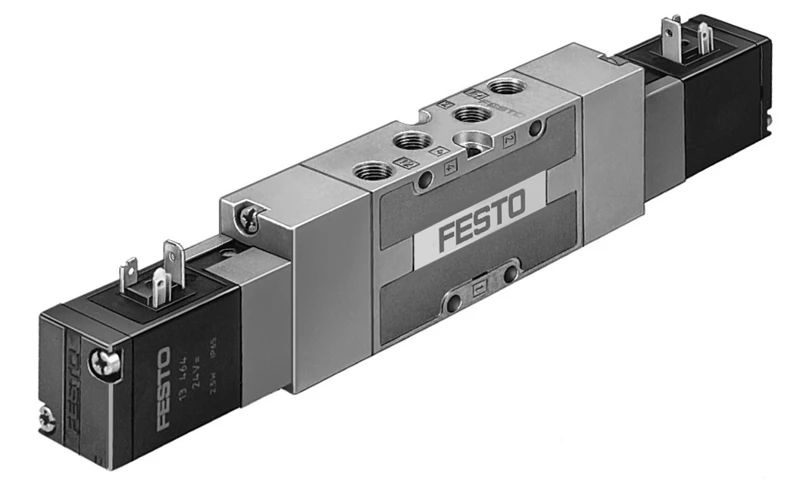

Solenoid valve, MVH-5/3B-1/8-S-B
SKU: 30999
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MVH-B, Tiger 2000
• Valve function 5/3-way, pressurised
• Type of actuation Electric
• Construction width 26 mm
• Standard nominal flow rate (standardised to DIN 1343) 1000 l/min
• Pneumatic working port G1/8
• Operating voltage 24V DC
• Operating pressure -0.09 MPa ... 1 MPa
• Operating pressure -0.9 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring
• Nominal size 8 mm
• Grid dimension 27 mm
• Sealing principle Soft
• Mounting position optional
Buy currently uses Select Automation shop pricing and checkout.
Tiger valve 2000
• Solenoid valve in a functional, timeless design with closed housing front.
• Sturdy and reliable
• Wide range of voltages thanks to individual coils
• Principle with armature tube
• To EU Explosion Protection Directive (ATEX)
