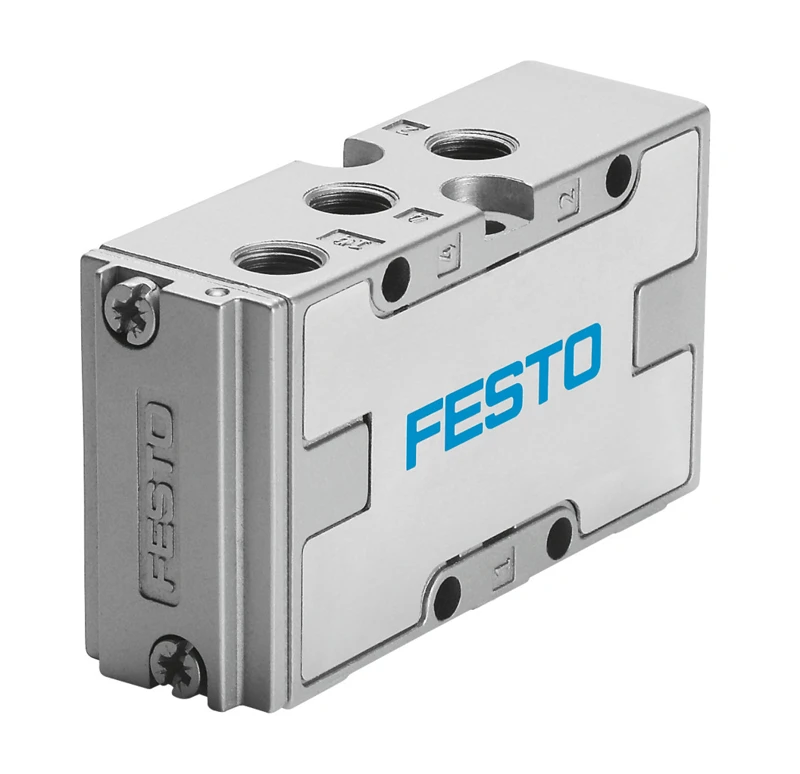

Pneumatic valve, VL-5-1/8-B

Specifications • Pneumatic valves VL, Tiger 2000 • Valve function 5/2-way, monostable • Type of actuation Pneumatic • Construction width 26 mm • Standard nominal flow rate (standardised to DIN 1343) 750 l/min • Pneumatic working port G1/8 • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar • Design Poppet seat • Type of reset Mechanical spring • Nominal size 5 mm • Grid dimension 27 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
