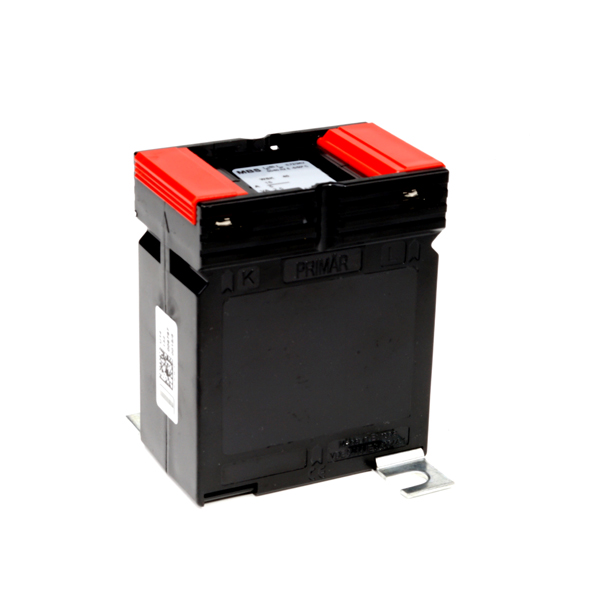

WSK40 30/5A PRIMARY WOUND CT cl 1
SKU: 31074
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Class of isolation: E.
Up to 0.72 kV is the maximum operating voltage.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Primary wound current transformers (5A secondary - class 1),
WSK 40 primary wound current transformers,
MODEL WSK 40,
RATIO 30/5A,
DESCRIPTION Primary wound current transformer,
CLASS 1,
VA 10,
DIMENSIONS (MM) (H) 89 x (W) 71 x (D) 45
