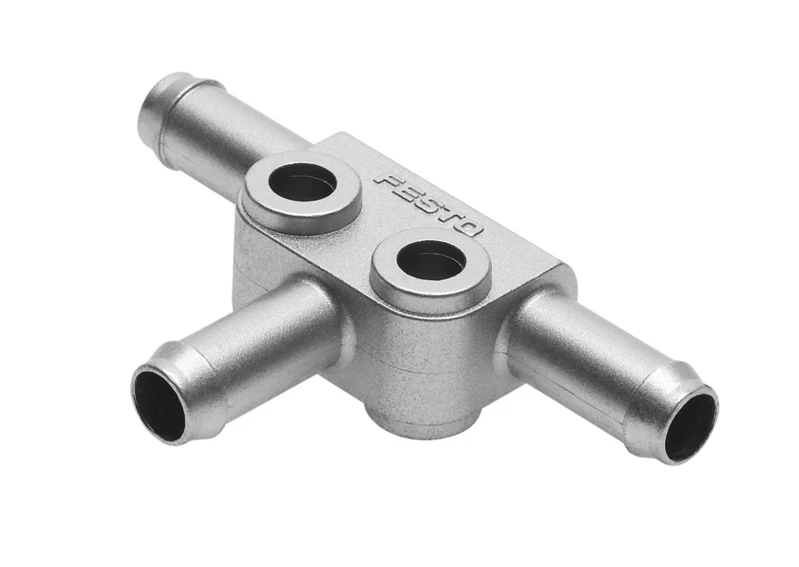

Barbed T-connector, FCN-3-PK-6/4

Specifications • Barbed T-connector FCN • Nominal size 2.9 mm • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature 0 °C ... 60 °C • Pneumatic connection, port 1 For tubing outside diameter of 6 mm • Pneumatic connection, port 2 For tubing outside diameter of 8 mm • Note on materials RoHS-compliant • Material housing Die-cast zinc
