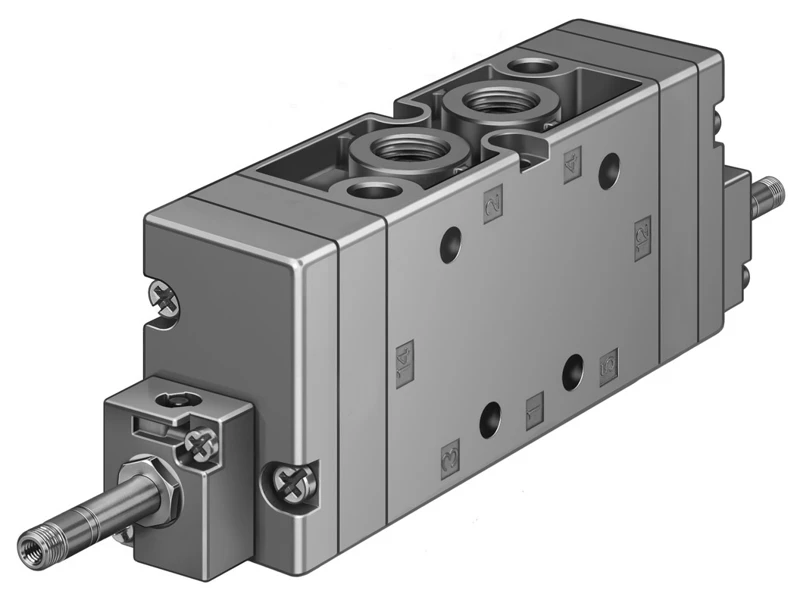

Solenoid valve, MFH-5/3E-3/8-S-B
SKU: 31318
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MFH-B, Tiger 2000
• Valve function 5/3 exhausted
• Type of actuation Electric
• Construction width 40 mm
• Standard nominal flow rate (standardised to DIN 1343) 2200 l/min
• Pneumatic working port G3/8
• Operating pressure -0.09 MPa ... 1 MPa
• Operating pressure -0.9 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring
• Nominal size 12 mm
• Grid dimension 41 mm
• Exhaust-air function With flow control option
• Sealing principle Soft
• Mounting position optional
Buy currently uses Select Automation shop pricing and checkout.
Tiger valve 2000
• Solenoid valve in a functional, timeless design with closed housing front.
• Sturdy and reliable
• Wide range of voltages thanks to individual coils
• Principle with armature tube
• To EU Explosion Protection Directive (ATEX)
