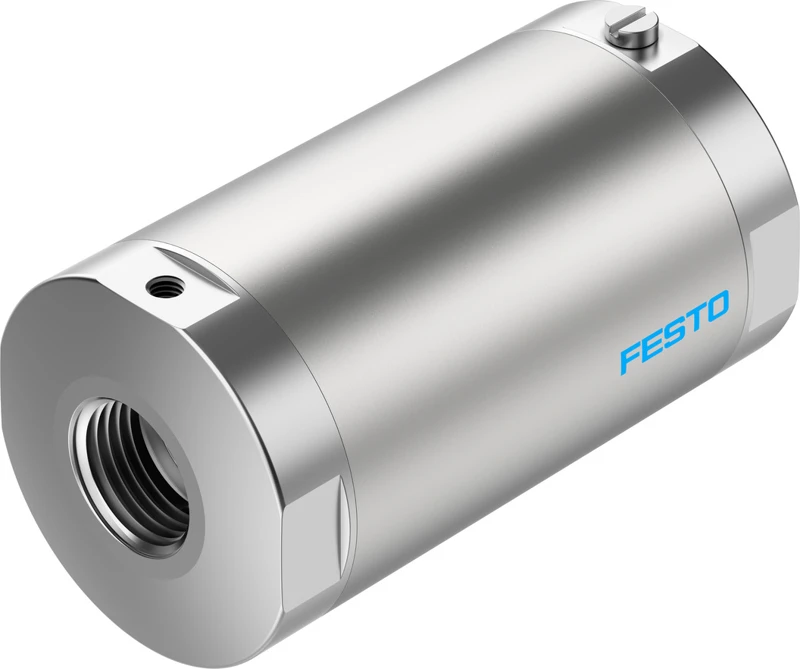

Pinch valve, VZQA-C-M22C-…
SKU: 3174282
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pinch valves VZQA
• See datasheet for available configurations
• Design Pinch valve, pneumatically actuated
• Type of actuation Pneumatic
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Valve function 2/2-way, closed, monostable
• Flow direction Reversible
• Medium pressure 0 bar ... 6 bar
• Operating pressure 3.5 bar ... 6 bar
• Nominal pressure PN 10
• Burst pressure 16 bar
• Type of reset Mechanical spring
• Type of piloting Externally controlled
Buy currently uses Select Automation shop pricing and checkout.
Pinch valve VZQA
• Normally closed or normally open? The choice is yours.
• With the pinch valve VZQA, you can control media flows such as granulate, fluids containing solids and highly viscous or abrasive media even better.
• The compact valve is quick to install, easy to clean and offers modular configuration.
• Modular design
• Quick and easy replacement of the diaphragm
• For critical, abrasive and viscous media
• Easy-to-clean design
• Flow direction is freely selectable
• Versions with end-position sensing
