Small footprint speed controller, 3200i/16
SKU: 3200i-16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

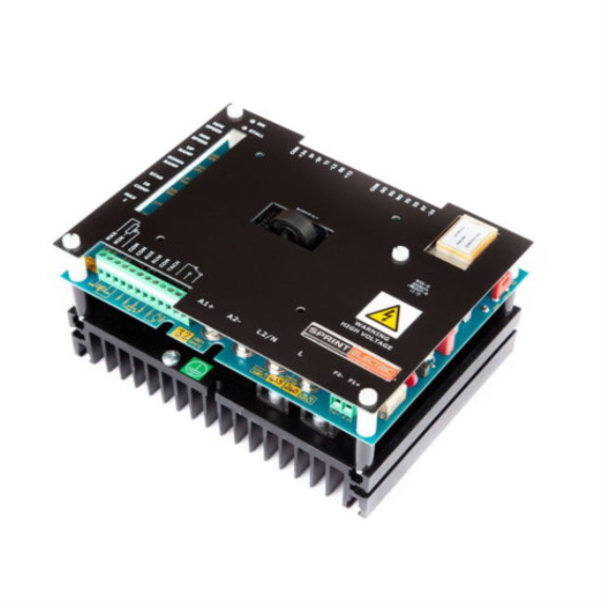

Small brushed or permanent magnet DC motors can be controlled with the Sprint 3200i/16 Small Footprint Speed Controller.
The ultra-compact DIN rail mounting of this drive is well-known for saving panel space and facilitating simple installation.
DC motors with an output power of up to 4kW can use the 3200i/16 model since it has an output current of up to 16A.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: Up to 4kW (5.3HP).
Output Current: 16A.
Mounting: DIN rail.
Cooling: Fully isolated control electronics.
Adjustable IR Compensation: For improved AVF speed regulation.
Selectable Dual Voltage AC Supply: 240-415V or 360-440V.
User Adjustable: Max motor speed, min motor speed, up ramp, down ramp, stability, Imax, IR comp, AVF/Tach switch, speed range switch, AC voltage selector, signal level comparator.
Protection: 150% overload with stall protection.
Additional Features: Push-button reversing function, easy to access drive adjustments, plug-on screw terminals.
