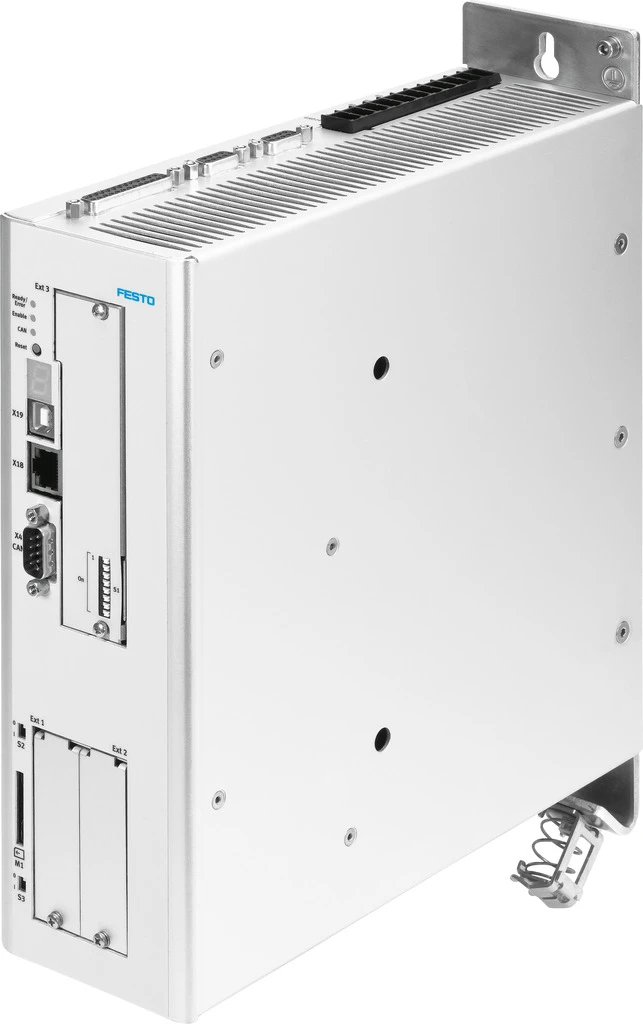

Motor controller, CMMP-AS-C15-11A-P3-M3
SKU: 3215473
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Motor controller CMMP-AS
• Nominal current 13 A
• Nominal operating voltage AC 400 V
• Phases of nominal operating voltage 3-phase
• Controller nominal output 9000 VA
• Fieldbus link CANopen - DeviceNet - EtherCAT - EtherNet/IP - Modbus/TCP - PROFINET - Profibus DP
• Type of mounting On sub-base, Screw-clamped
• Product weight 3450 g
• Display 7-segment display
• Approval RCM trademark, c UL us listed (OL)
• Ambient temperature 0 °C ... 40 °C
• Relative air humidity 0 - 90%
• Degree of protection IP10, IP20
Buy currently uses Select Automation shop pricing and checkout.
Motor controller CMMP-AS
• The servo motor controller (servo drive) CMMP-AS is the extremely functional solution for dynamic movements and with expansion options, e.g. for EtherCAT® connection or safety module.
• Many interfaces and functions for decentralised motion functions (flying saw, flying measurement, modulo function, etc.)
• Optional: integrated cam disk controllers and highly dynamic movements
• Standardised interfaces allow seamless integration in mechatronic multi-axis modular systems
• Reliable and easy commissioning and parameterisation with the Festo Configuration Tool (FCT)
• Optionally with 3 slots for extension modules
• Variants with safety functions
• 255 positioning records
