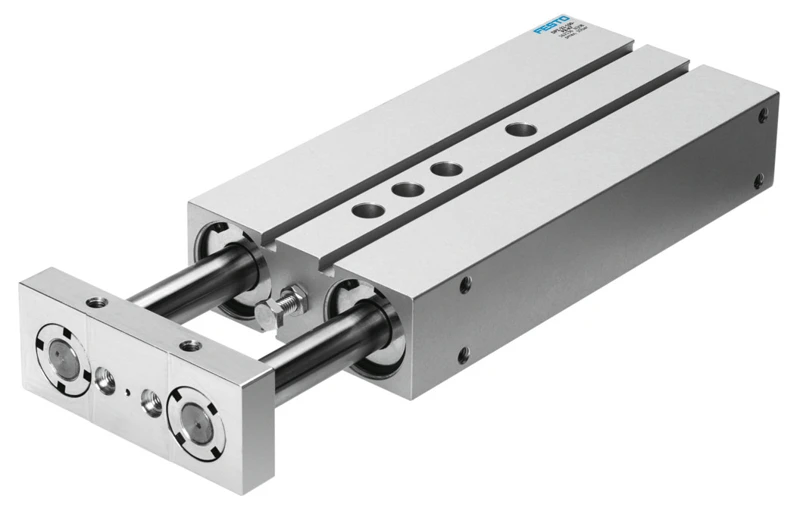

Twin cylinder, DPZ-25-80-P-A

Specifications • Twin cylinders Basic version DPZ • Distance from centre of gravity of load to yoke plate xs 0 mm • Stroke 80 mm • Adjustable end-position range/length 10 mm • Piston diameter 25 mm • Operating mode, drive unit Yoke • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Guide Plain-bearing guide • Design Guidance • Position detection Via proximity switch • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 590 N
