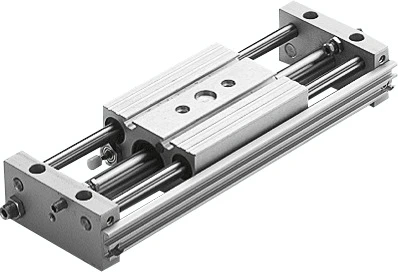

Linear drive unit, SLM-40- -KF-A

Specifications • Linear drives SLM, with guide • Stroke 10 mm ... 1500 mm • Piston diameter 40 mm • Cushioning Elastic cushioning rings/plates at both ends Shock absorber, hard characteristic curve • Mounting position optional • Guide Recirculating ball bearing guide • Position detection Via proximity switch, Via inductive sensors • Variants Standard design, Hollow guide rod, Hollow guide rod and reversing plate • Operating pressure 0.7 MPa • Operating pressure 7 bar • Mode of operation Double-acting • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
