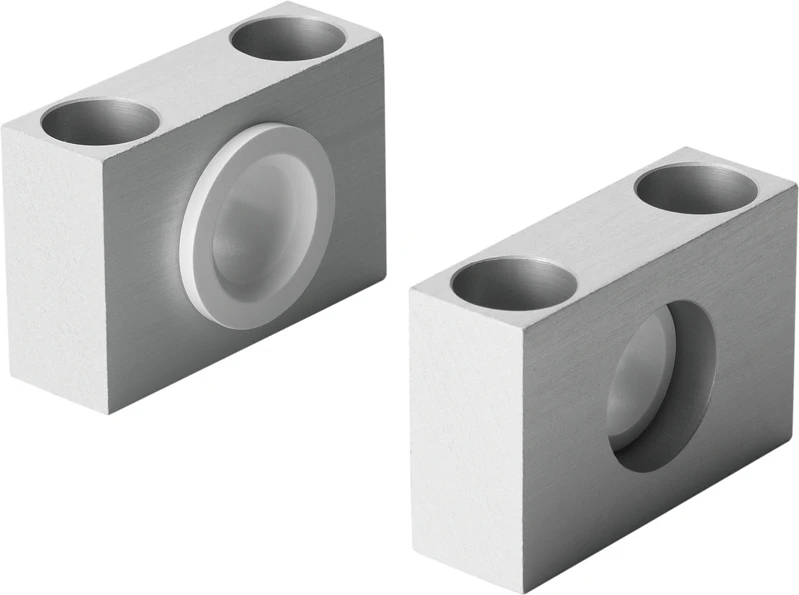

Compact cylinders ADN/AEN Accesssories, Trunnion support, LNZG-100/125

Specifications • Compact cylinders ADN/AEN • Accessories Trunnion support • Size 100/125 • Based on standard ISO 15552 • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Suitability for the production of Li-ion batteries Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils • Ambient temperature -40 °C ... 80 °C • Product weight 306 g • Note on materials RoHS-compliant • Material mounting Wrought aluminium alloy • Material bearing Polymer
