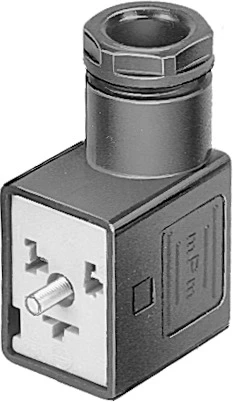

Plug socket, MSSD-V
SKU: 33295
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Plug socket
• Type of mounting On solenoid valve via M3 central screw
• Cable outlet Angled
• Note on cable outlet 180° rotatable
• Mounting position optional
• Product weight 18 g
• Electrical connection 3-pin, Socket, Angled socket, Type B, To DIN EN 175301-803, Square design MSV
• Electrical connection 1, design Angular
• Electrical connection 1, connection type Socket
• Electrical connection 1, cable outlet Angled
• Electrical connection 1, number of connections/cores 3
• Electrical connection 2 Screw terminal
• Degree of protection IP65
Buy currently uses Select Automation shop pricing and checkout.
Plug socket MSSD
• For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils
• For connecting individual valves
• Available with LED display
