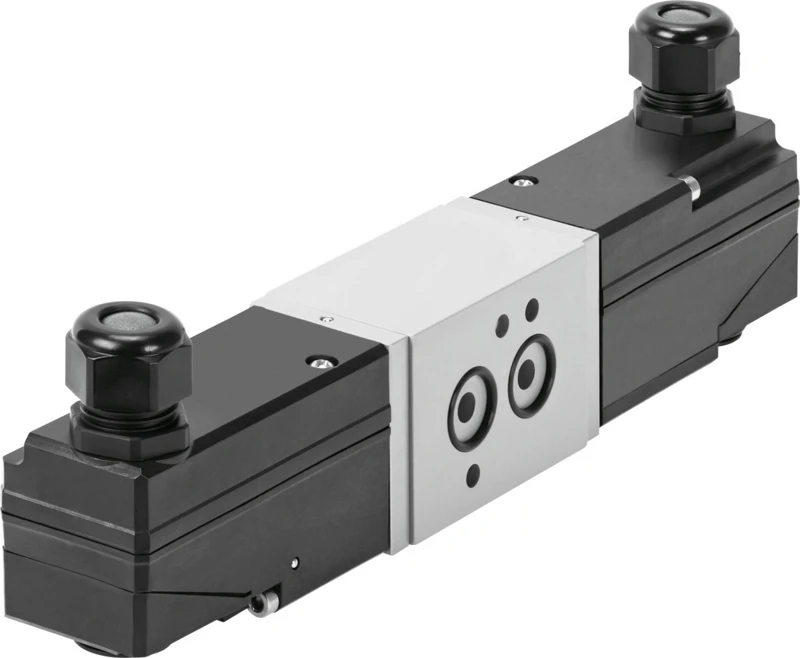

Valve, VOFC-L
SKU: 3344863
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VOFC
• Valve function 3/2-way, closed, monostable, 5/2 double solenoid, 5/2-way, monostable
• Type of actuation Electric
• Construction width 40 mm
• Standard nominal flow rate (standardised to DIN 1343) 913 l/min ... 1030 l/min
• Pneumatic working port Sub-base, G1/4, 1/4 NPT
• Operating pressure 0.25 MPa ... 1 MPa
• Operating pressure 2.5 bar ... 10 bar
• Operating pressure 36.25 psi ... 145 psi
• Design Piston gate valve
• Type of reset Mechanical spring
• Degree of protection IP50, IP65
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VOFC
• Indirectly controlled pilot valve for particularly demanding operating conditions.
• Redundant version for safety systems up to SIL3.
• Suitable for process automation in the chemical and petrochemical industries
• Suitable for outdoor use under harsh ambient conditions
• Especially suitable for quarter turn actuators thanks to NAMUR flange pattern
• Valve can switch between internal and external pilot air
• Variants with safety functions
• Variants to EU Explosion Protection Directive (ATEX)
