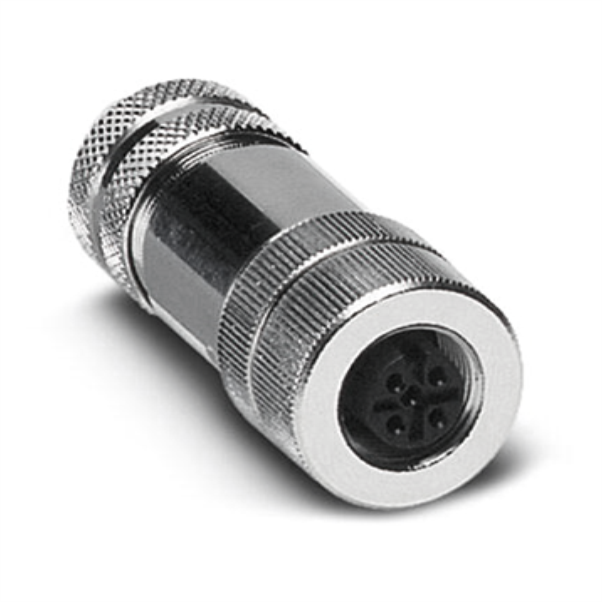

M12, 5pin A-Coded Connector Female
SKU: 34050515
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Designed for industrial applications, the M12, 5-pin A-Coded Female Connector (part number 34050515) is a sturdy and dependable connector.
In automation systems, it is frequently used to connect sensors, actuators, and other components.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Connector Type: M12, Female.
Number of Pins: 5.
Coding: A-Coded.
Rated Voltage: 250 V.
Rated Current: 4 A.
Contact Resistance: ≤ 5 mΩ.
Insulation Resistance: ≥ 100 MΩ.
Temperature Range: -40 °C to +85 °C.
Protection Class: IP67.
Material:
Contacts: Brass, gold-plated.
Housing: PA (Polyamide).
Sealing: NBR (Nitrile Butadiene Rubber).
Connection Type: Screw Terminals.
Cable Diameter: 4 – 8 mm.
