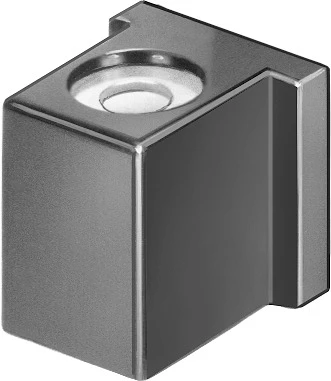

Solenoid coil, MSFG-24/42-50/60-DS-OD

Specifications • Solenoid coils MSF • Mounting position optional • Switching position indicator no • Min. pick-up time 10 ms • Duty cycle 100% • Power factor (cos phi) 0.7 • Characteristic coil data 24 V DC: 4.5 W, 42 V AC: 50/60 Hz, pick-up power 9.0 VA, holding power 7.0 VA • Permissible frequency fluctuations +/- 5% • Permissible voltage fluctuations +/- 10 % • LABS (PWIS) conformity VDMA24364-C1-L • Degree of protection IP65 • Ambient temperature -5 °C ... 40 °C • Max. tightening torque for socket 0.4 Nm
