Festo MSSD 3P DIN 43650 B, female solenoid Connector
SKU: 34431
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

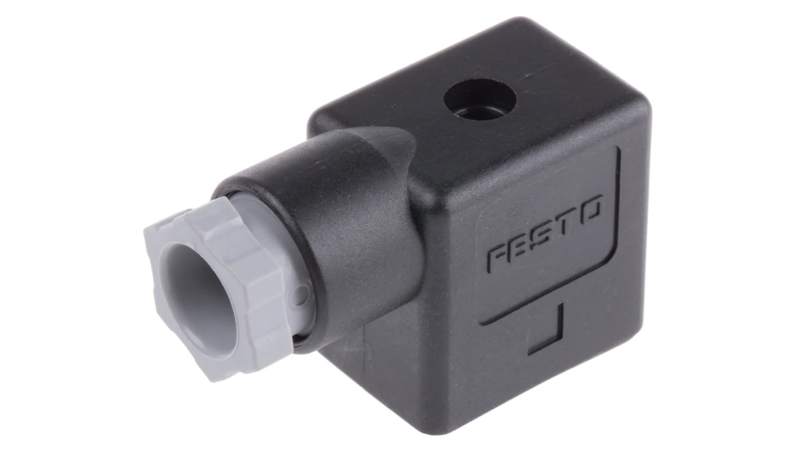

Festo Pneumatic Solenoid Coil Connector, Plug Connector - MSSD series - MSSD-F
This pneumatic solenoid coil connector from Festo is used to join valves with solenoid coils in your pneumatic system.
It's designed to support the electrical operation of valves in the Festo range.
To increase the coil's lifespan, the connector is built to withstand voltage surges and electromagnetic interference.
Sturdy construction ensures that the electrical supply to the valve won't be interrupted by moisture or dust particles.
The insert can be repositioned by 180° to match your valve installation.
Buy currently uses Select Automation shop pricing and checkout.
#html-body [data-pb-style=IEJJ4F4]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}• DIN 43650 connector for use with F solenoid coil valves• Angled socket, 3-pin connection• PG9 cable gland connection• Compatible with cable diameters of 6 mm to 8 mm• Connection cross-sample• M3 central screw mounting• IP65 rating for protection against nozzle-projected dust and water• Lightweight at 17 g• Operating temperature range of -10°C to +60°C
Range Information
• Festo's MSSD series is a range of valve plugs for self-assembly• They can be used in many industrial applications, such as machine-building or equipment manufacture• As the inserts can be repositioned to suit a variety of valve alignments, they're a versatile choice
