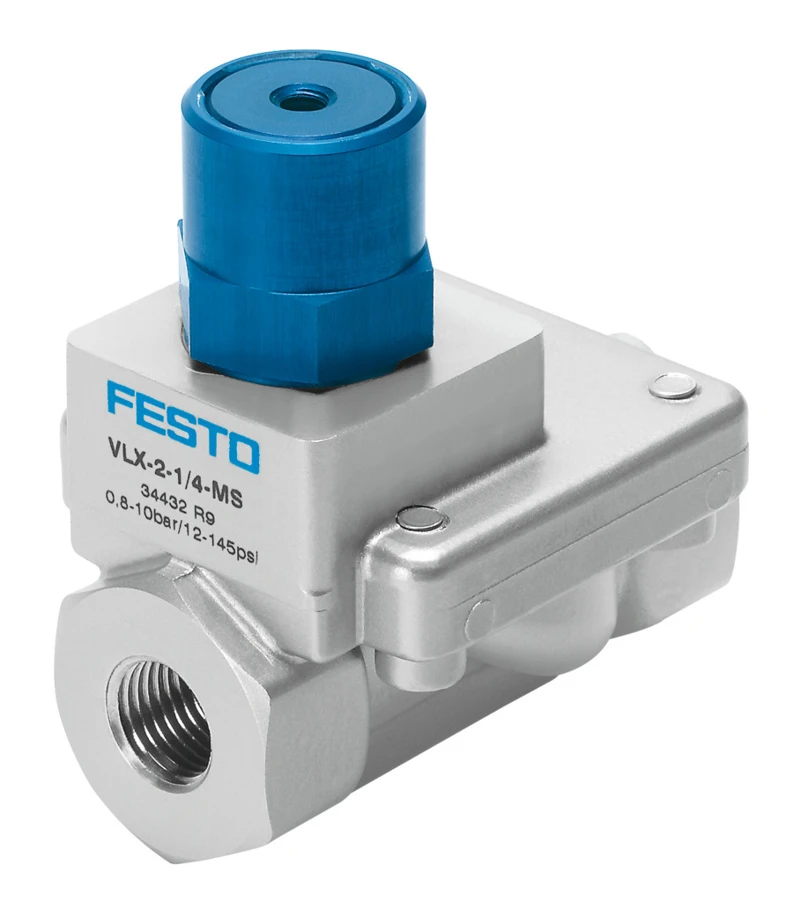

Pneumatic valve, VLX-2-1/4-MS

Specifications • Pneumatic valves VLX • Design Diaphragm valve • Type of actuation Pneumatic • Sealing principle Soft • Mounting position optional • Type of mounting In-line installation • Connection Process valve G1/4 • Nominal size 13 mm • Valve function 2/2-way, closed, monostable • Flow direction Non-reversible • Medium pressure 1 bar ... 10 bar • Exhaust-air function Without flow control option • Type of reset Pneumatic spring • Type of piloting Pilot actuated • Pilot medium Compressed air to ISO 8573-1:2010 [7:-:-] • Standard nominal flow rate (standardised to DIN 1343) 2400 l/min
