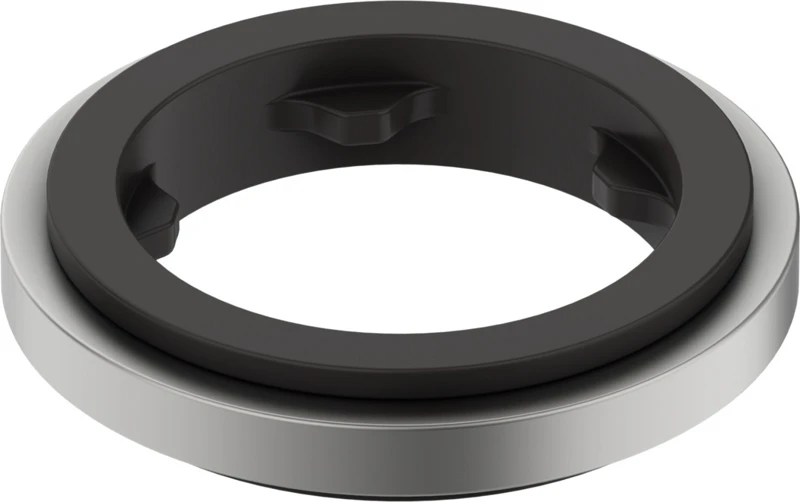

Sealing ring, OL-M5

Specifications • Sealing material, Sealing ring • Based on standard ISO 16030 • Operating pressure complete temperature range -0.095 MPa ... 3 MPa • Operating pressure complete temperature range -0.95 bar ... 30 bar • Operating pressure complete temperature range -13.775 psi ... 435 psi • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Ambient temperature -40 °C ... 100 °C • Tightening by hand at room temperature yes • Nominal torque 2.5 Nm • Tolerance for nominal tightening torque ± 20% • Product weight 0.06 g • Pneumatic connection M5
