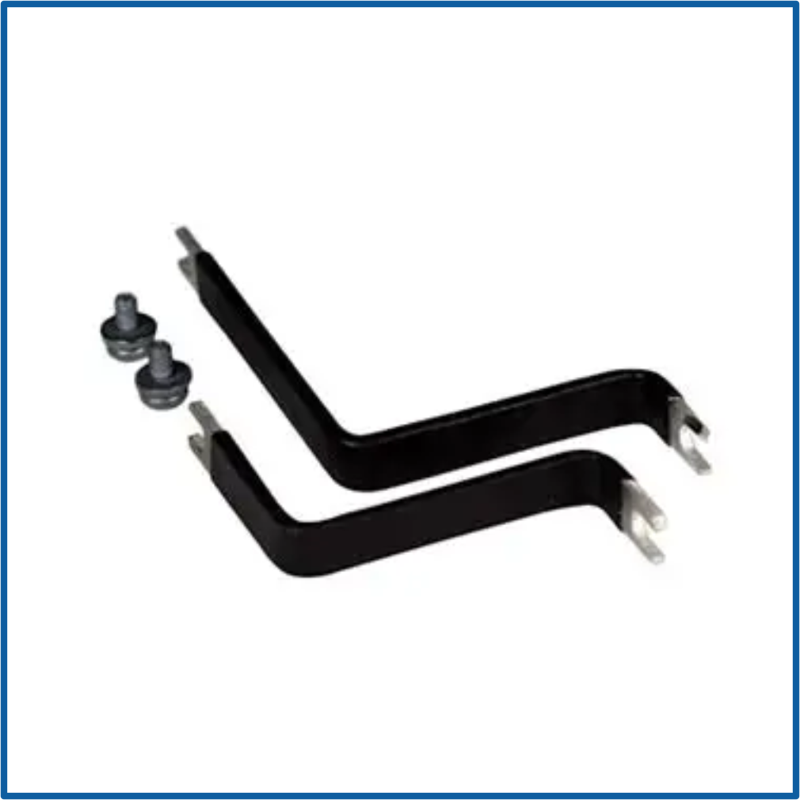

DC BUS CONN. KIT - UNIM FR03 (PANEL MOUNT)
SKU: 3470-0146
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The DC Bus Connection Kit - UNIM FR03 (Panel Mount) (Part No. 3470-0146) is an attachment for Nidec Control Techniques Digitax HD drives, designed to ensure safe and dependable panel-mounted DC bus connections.
The hardware for interconnecting drives in a multi-axis or shared DC bus architecture ensures correct mechanical support, insulation, and EMC compliance.
Panel Mount Design: Designed for FR03 frame drives mounted in panels.
Safe DC Bus Connections: Offers reliable mechanical and electrical connections.
Improved EMC Compliance: Ensures proper shielding and grounding.
Simplifies installation and reduces wiring complexity in multi-drive systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Manufacturer: Nidec Control Techniques.
Part Number: 3470‑0146.
Product Name: DC Bus Connection Kit – UNIM FR03 (Panel Mount).
Type: Panel‑mount accessory kit.
Function: Provides hardware for connecting DC bus cables between drives in a panel‑mounted setup.
Contents:
DC bus connectors (for FR03 frame size drives).
Mounting brackets and screws.
Insulation and protective fittings.
Compatibility: Digitax HD drives, Frame Size FR03 (panel‑mount versions).
Application: Used in multi‑axis systems where drives share a common DC bus.
