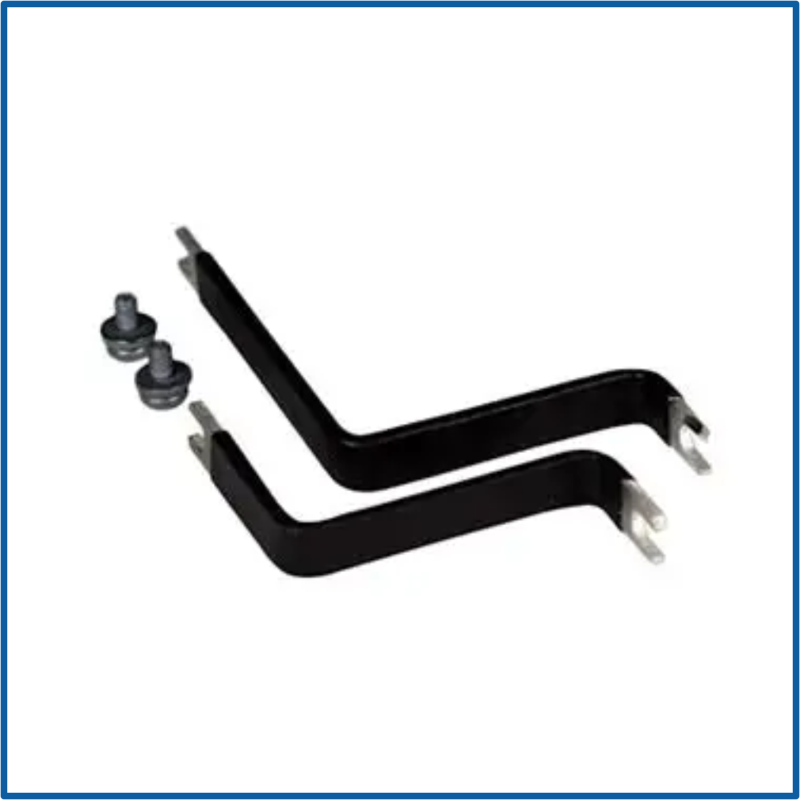

DC BUS CONN. KIT - UNIM FR03 (THROUGH MOUNT)
SKU: 3470-0147
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The DC Bus Connection Kit - UNIM FR03 (Through Mount) (Part No. 3470-0147) is a specialist accessory for Nidec Control Techniques Digitax HD drives. It enables through-mounted DC bus connections for Frame Size FR03 units.
This product offers the necessary mechanical and electrical hardware to properly connect drives in a multi-axis or shared DC bus configuration. It is designed for installations where drives are installed through a panel rather than on the surface.
Through-Mount Design: Designed for FR03 frame drives placed through a panel cutout.
Safe DC Bus Connections: Provides reliable mechanical and electrical connections between drives.
Improved EMC Compliance: Provides correct shielding and grounding for DC bus wiring.
Simplifies installation and reduces wiring complexity in multi-drive systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Manufacturer: Nidec Control Techniques.
Part Number: 3470‑0147.
Product Name: DC Bus Connection Kit – UNIM FR03 (Through Mount).
Type: Through‑mount accessory kit.
Function: Provides connectors and fittings for DC bus interconnection in through‑mounted FR03 drives.
Contents:
DC bus connectors (for FR03 frame size drives).
Mounting brackets and screws.
Insulation and protective fittings.
Compatibility: Digitax HD drives, Frame Size FR03 (through‑mount versions).
Application: Used in multi‑axis systems where drives share a common DC bus and are mounted through a panel.
