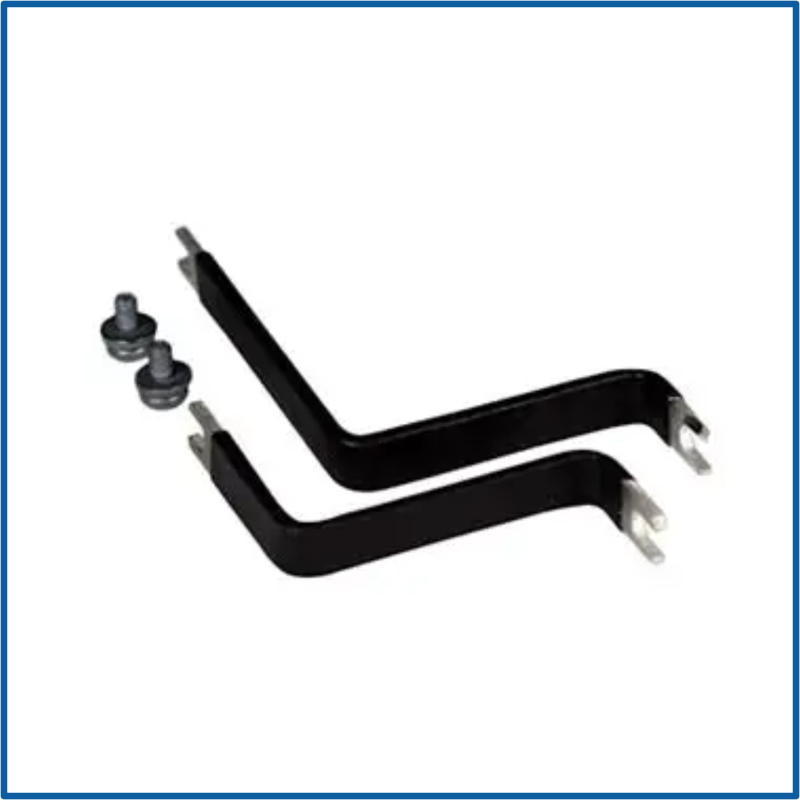

DC BUS CONN. KIT - UNIM FR06 (THROUGH MOUNT)
SKU: 3470-0149
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The DC Bus Connection Kit - UNIM FR06 (Through Mount) (Part No. 3470-0149) is a dedicated attachment for Nidec Control Techniques Digitax HD drives, specifically for Frame Size FR06 through-mounted units.
The hardware allows for safe interconnection of drives via a shared DC bus when mounted through a panel cut-out.
This ensures adequate electrical linkage, mechanical support, and EMC compliance.
Through-Mount Design: Designed for FR06 frame drives placed through a panel cutout.
Safe DC Bus Connections: Provides reliable mechanical and electrical connections between drives.
Improved EMC Compliance: Provides correct shielding and grounding for DC bus wiring.
Simplifies installation and reduces wiring complexity in multi-drive systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Manufacturer: Nidec Control Techniques.
Part Number: 3470‑0149.
Product Name: DC Bus Connection Kit – UNIM FR06 (Through Mount).
Type: Through‑mount accessory kit.
Function: Provides connectors and fittings for DC bus interconnection in FR06 through‑mounted drives.
Contents:
DC bus connectors (for FR06 frame size drives).
Mounting brackets and screws.
Insulation and protective fittings.
Compatibility: Digitax HD drives, Frame Size FR06 (through‑mount versions).
Application: Used in multi‑axis systems where drives share a common DC bus.
