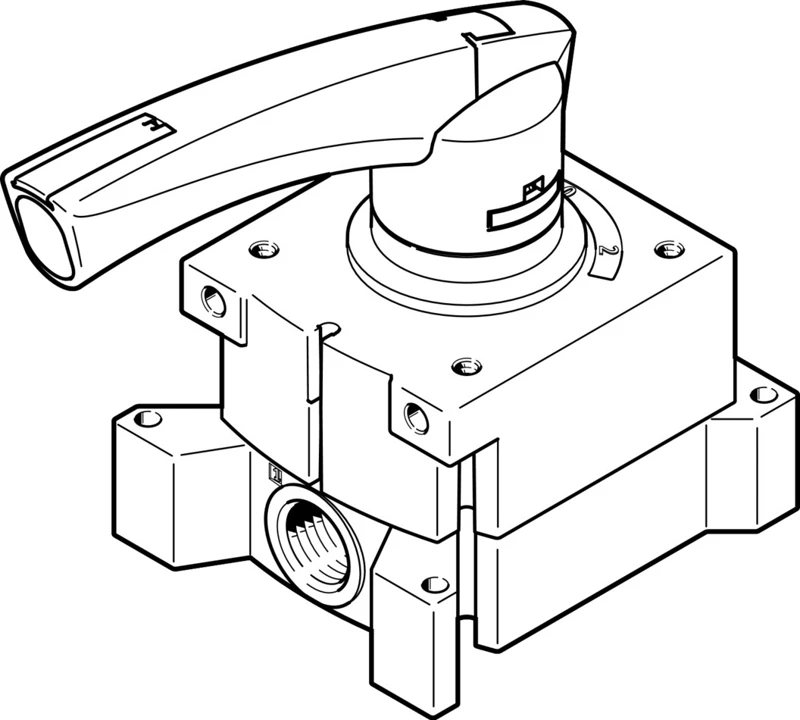

Hand lever valve, VHER-P-H-B43E-G14
SKU: 3515542
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Hand lever valve VHER, Polymer lever
• Valve function 4/3 exhausted
• Type of actuation Manual
• Construction width 66 mm
• Standard nominal flow rate (standardised to DIN 1343) 1150 l/min
• Pneumatic working port G1/4
• Operating pressure 0 bar ... 10 bar
• Note on operating pressure Vacuum operation at connection 3 only Zweidr.-Betr. Anschluss 1
• Design Rotary gate valve
• Nominal size 8 mm
• Exhaust-air function With flow control option
• Instructions on use Actuate manually only
• Actuator lock can be closed with accessories
• Sealing principle Hard
• Type of piloting Direct
• Flow direction Non-reversible
Buy currently uses Select Automation shop pricing and checkout.
Hand lever valve VHER
• Lever in metal or polymer design
• Front panel mounting, through holes or mounting holes:
• These valves can be used to stop single-acting cylinders (3/3-way valve) or double-acting cylinders within the stroke range.
• With the mid-position closed, the piston of the drive moves until the forces are in equilibrium.
• In the mid-position exhausting, the piston can be moved manually, only the frictional forces have to be overcome.
• In the mid-position exhausting, the same pressure is applied to port 2 and 4. The piston is not moved (with the same surface areas).
