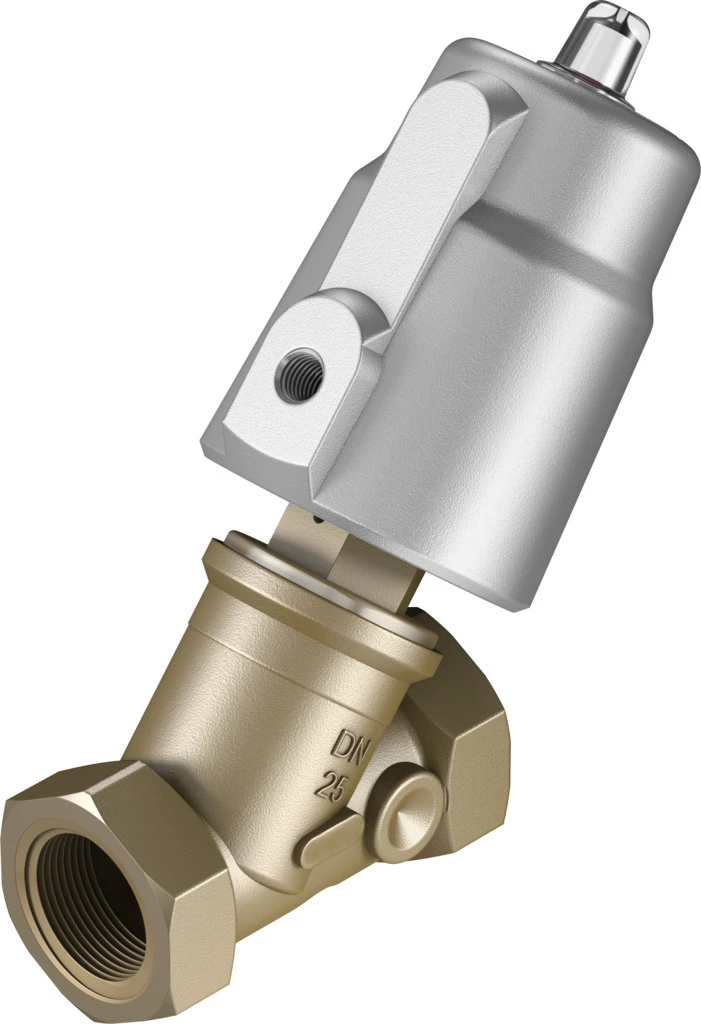

Angle seat valve, VZXF-L-M22C-M-A-G112-350-H3ALV-80-V
SKU: 3536850
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Angle seat valves VZXF, Gunmetal (red brass), vacuum version
• Design Poppet valve with piston drive
• Type of actuation Pneumatic
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Line connection Threaded coupling G1 1/2 to DIN ISO 228
• Nominal size 35 mm
• Valve function 2/2-way, closed, monostable
• Flow direction Non-reversible
• Medium pressure -0.09 MPa ... 0 MPa
• Medium pressure -0.9 bar ... 0 bar
• Nominal pressure PN 16
• Flow rate Kv 30.5 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Angle seat valve VZXF
• The sturdy universal angle seat valve VZXF is ideal for all applications in which gaseous, liquid or highly viscous media flows have to be controlled
• Sturdy design
• Stainless steel and gunmetal process valves with stainless steel, brass or aluminium actuators
• Different actuator sizes and housing materials
• Selection of different seat and shaft seals
• For liquids, gases and other easily contaminated media
• Easy-to-clean design
