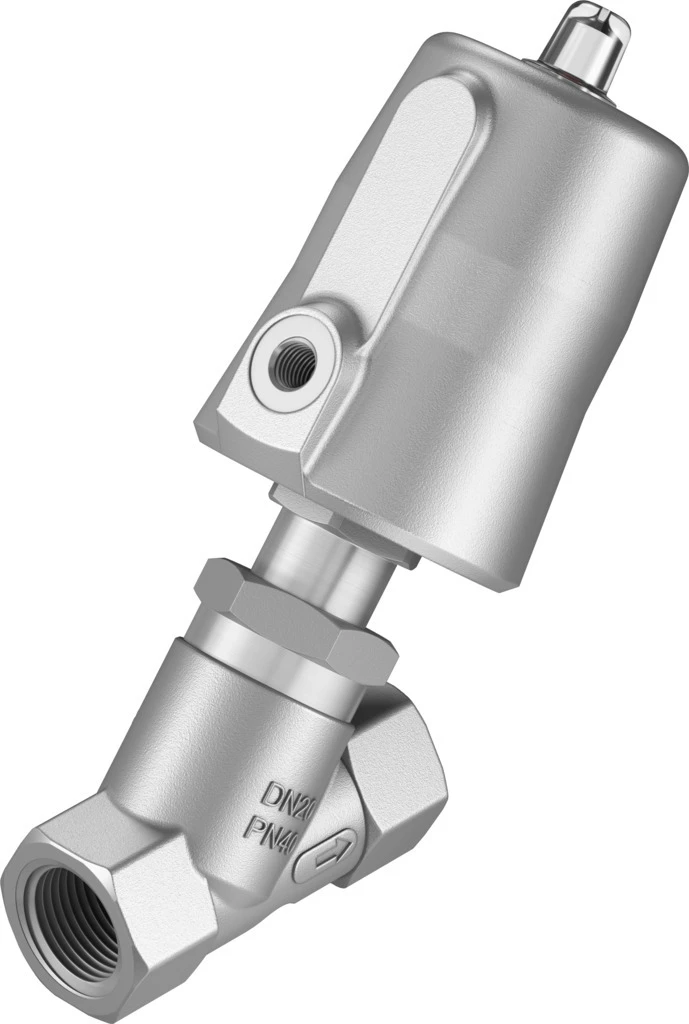

Angle seat valve, VZXF-L-M22C-M-B-G34-180-M1-V4B2T-50-20
SKU: 3538842
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Angle seat valves VZXF, Stainless steel casting, nickel-plated actuator head
• Design Poppet valve with piston drive
• Type of actuation Pneumatic
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Line connection Threaded coupling G3/4 to DIN ISO 228
• Nominal size 18 mm
• Valve function 2/2-way, closed, monostable
• Flow direction Non-reversible
• Medium pressure 0 MPa ... 2 MPa
• Medium pressure 0 bar ... 20 bar
• Nominal pressure PN 40
• Flow rate Kv 6.5 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Angle seat valve VZXF
• The sturdy universal angle seat valve VZXF is ideal for all applications in which gaseous, liquid or highly viscous media flows have to be controlled
• Sturdy design
• Stainless steel and gunmetal process valves with stainless steel, brass or aluminium actuators
• Different actuator sizes and housing materials
• Selection of different seat and shaft seals
• For liquids, gases and other easily contaminated media
• Easy-to-clean design
