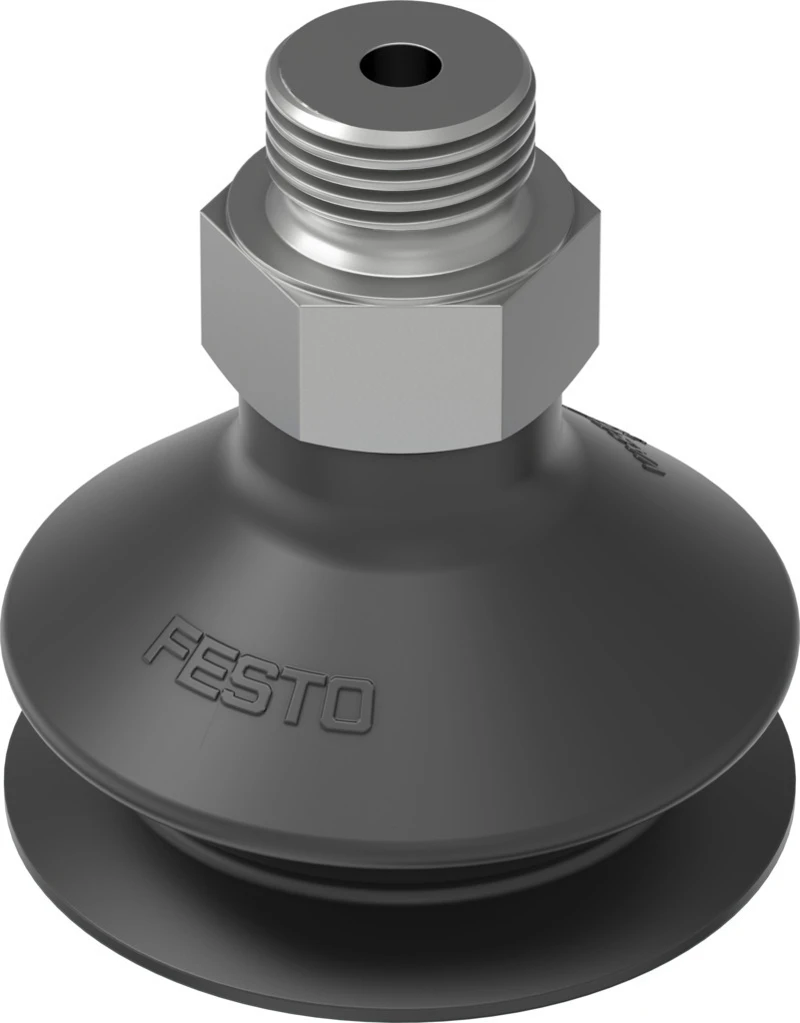

Suction cup complete, VASB-40-1/4-NBR
SKU: 35413
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Suction cups with connector VASB-...-NBR, protective bellows
• Nominal size 4 mm
• Suction cup diameter 40 mm
• Effective suction diameter 32 mm
• Position of connection Top
• Symbol 00991485
• Suction cup shape Round bellows 1.5 convolutions
• Operating pressure -0.095 MPa ... 0 MPa
• Operating pressure -0.95 bar ... 0 bar
• Operating pressure -13.775 psi ... 0 psi
• Nominal operating pressure -0.07 MPa
• Nominal operating pressure -0.7 bar
• Nominal operating pressure -10.15 psi
• Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
• Material suction cup NBR
Buy currently uses Select Automation shop pricing and checkout.
Suction cup with connection VAS, VASB
• The VAS(B) series is the right solution for transporting workpieces with a wide range of weights, surfaces and shapes.
• Sturdy and reliable
• Suction cups with fixed connecting thread
• 11 suction cup diameters
• Round suction cup, bellows
• Vacuum connection on top, on side
• Screw-in thread
