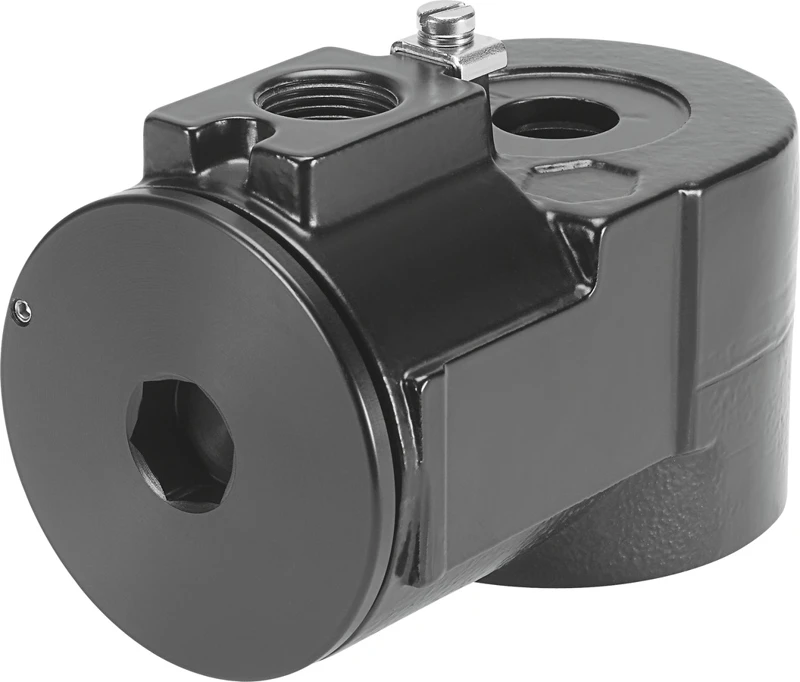

Solenoid coil, VACC-S18-70-K5-3-U2D

Specifications • Solenoid coils VACC-S18-70-...-U2D, Terminal box, cable entry thread 1/2 NPT • Type of actuation Electric • Mounting position optional • Switching position indicator no • Duty cycle 100% • Insulation material class H • Characteristic coil data 220 V DC: 7.0 W • Permissible voltage fluctuations -15%/+10% • CE mark (see declaration of conformity) To EU Low Voltage Directive • Explosion protection certification outside the EU Class I, Div. 2 (CA), Class I, Div. 2 (US) • Explosion protection Class I, Div. 2 (CA), Class I, Div. 2 (US) • LABS (PWIS) conformity VDMA24364 zone III • Degree of protection IP65 • Product weight 1700 g
