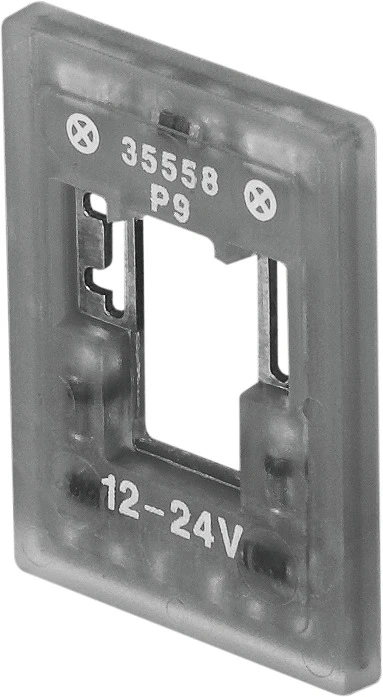

Illuminating seal, MV-LD-12-24DC
SKU: 35558
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Illuminating seal
• Switching position indicator LED
• Type of mounting On solenoid valve via M3 central screw
• Product weight 1.6 g
• Electrical connection Type B, To DIN EN 175301-803, Square design MSV
• Operational voltage range DC 12 V ... 24 V
• Protective conductor connection Available
• Nominal power illuminating seal 0.05 W
• Degree of protection IP65
• Ambient temperature -25 °C ... 85 °C
• LABS (PWIS) conformity VDMA24364-B2-L
• Material housing TPE-U(PU)
• Colour Transparent
Buy currently uses Select Automation shop pricing and checkout.
Illuminating seal MC-LD, ME-LD, MEB-LD, MF-LD, MV-LD
• The seal lights up yellow when the power is switched on
• For mounting between the solenoid coil and connector socket or device plug
• For F, D, N1, V, E and EB solenoid coils
