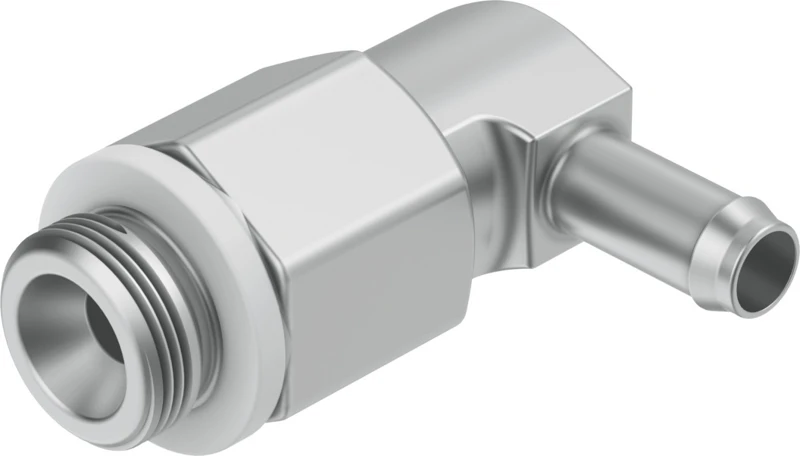

Barbed elbow fitting, LCNH-1/4-PK-4

Specifications • Barbed elbow fitting LCNH • Nominal size 2.9 mm • Type of seal on screwed plug Sealing ring • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature 0 °C ... 60 °C • Pneumatic connection, port 1 Male thread G1/4 • Pneumatic connection, port 2 For tubing outside diameter of 6 mm
