4 quadrant regenerative controller, 3600XRi/16/LL
SKU: 3600XRi-16-LL
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Pricing available on request
Description:

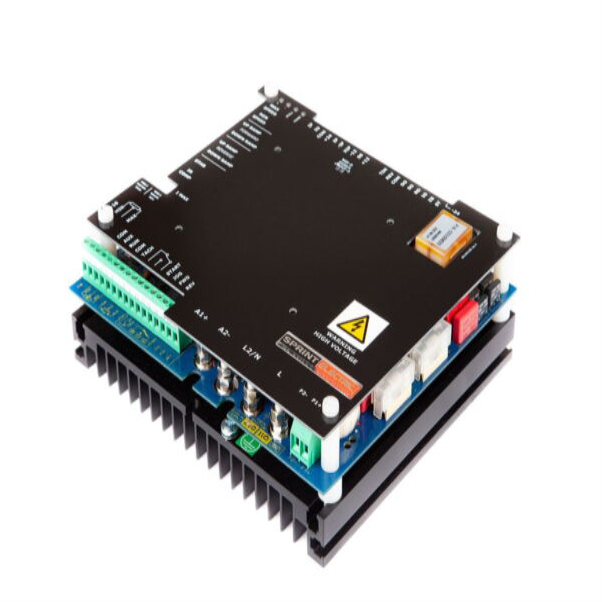

A 4-quadrant regenerative controller, the Sprint 3600XRi/16/LL is intended for shunt wound or permanent magnet motors up to 4kW.
Applications requiring forward, reverse, and brake movements can benefit from this little drive's 16A output current.
For simple connection to other drives or equipment, it has independent control electronics.
The 3600XRi/16/LL has an output voltage of up to 320VDC and is intended for single-phase 240–415VAC input.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: Up to 4kW (5.3HP).
Output Current: 16A.
Mounting: Open chassis mount.
Cooling: Fully isolated control electronics.
Input Voltage: 240-415VAC.
Output Voltage: Up to 320VDC.
Control Features: Dual setpoint facility for alternate speed e.g. run and crawl, direct pushbutton inputs for control of stop/start, direction and jog functions, push-button forward/reverse, multiple I/O, push-button start function.
User Adjustable Presets: Forward, acceleration, reverse acceleration, forward deceleration, reverse deceleration, max motor speed, min motor speed, motor current limit, brake current limit, forward current limit, reverse current limit, positive current limit, negative current limit, IR comp, stability.
