4 quadrant regenerative controller, 3600XRi/36/LL
SKU: 3600XRi-36-LL
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

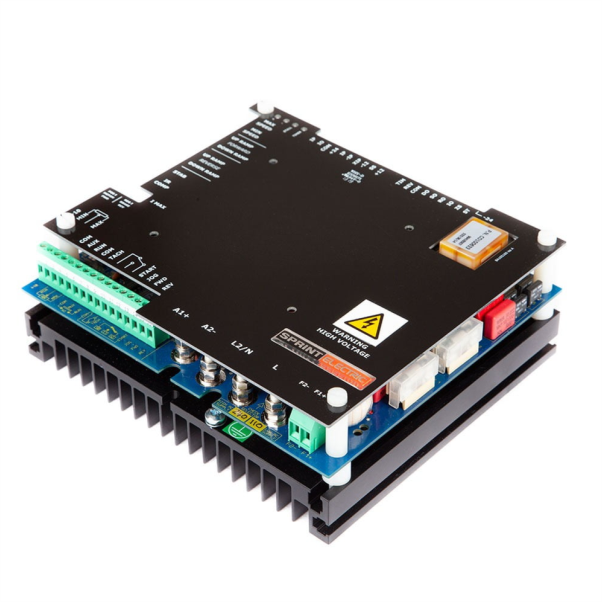

A 4-quadrant regenerative controller, the 3600XRi/36/LL is made to precisely manage shunt wound or permanent magnet motors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage: 240 – 415VAC.
Output Voltage: Up to 320VDC.
Output Power: Up to 9.5kW.
Output Current: Up to 36A.
Control: 4-quadrant (fully regenerative).
Cooling: Naturally vented.
User Adjustable: Forward/reverse acceleration, forward/reverse deceleration, max/min motor speed, motor current limit, brake current limit, IR comp, stability.
Protection: Overload and stall protection.
Additional Features: Push-button reversing function, multiple I/O, direct pushbutton inputs for control of stop/start, direction, and jog functions.
