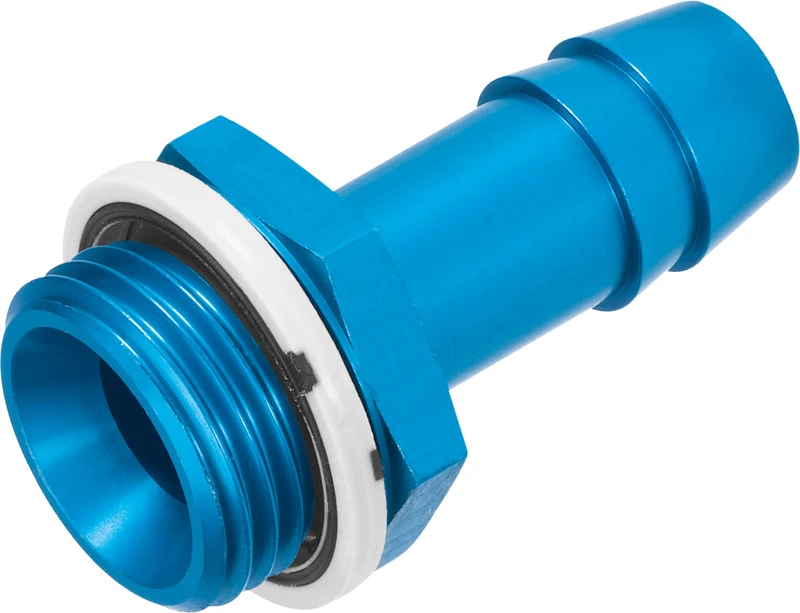

Barbed hose fitting, N-1/2-P-13

Specifications • Barbed hose fitting C-P, N-P • Nominal size 11 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Design Straight design • Size of pack 1 • Operating pressure complete temperature range -0.95 bar ... 16 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Pneumatic connection, port 1 Male thread G1/2 • Pneumatic connection, port 2 For tubing inside diameter of 13 mm
