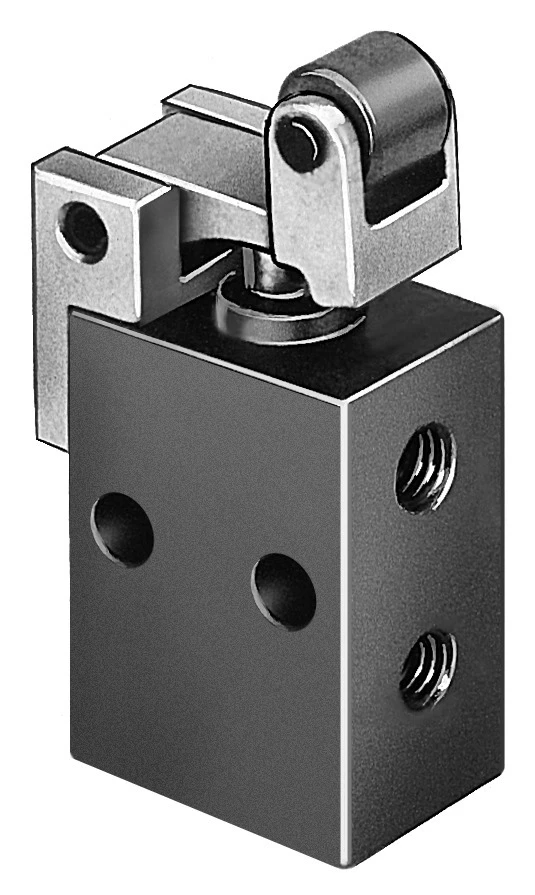

Roller lever valve, R-3-M5

Specifications • Valves, mechanically actuated, Roller lever valve • Valve function 3/2-way, closed, monostable • Type of actuation Mechanical • Standard nominal flow rate (standardised to DIN 1343) 80 l/min • Pneumatic working port M5 • Operating pressure -0.95 bar ... 8 bar • Design Poppet seat • Nominal size 2 mm • Type of piloting Direct • Symbol 00991097 • Explosion protection Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) • Operating medium Compressed air to ISO 8573-1:2010 [-:-:-]
