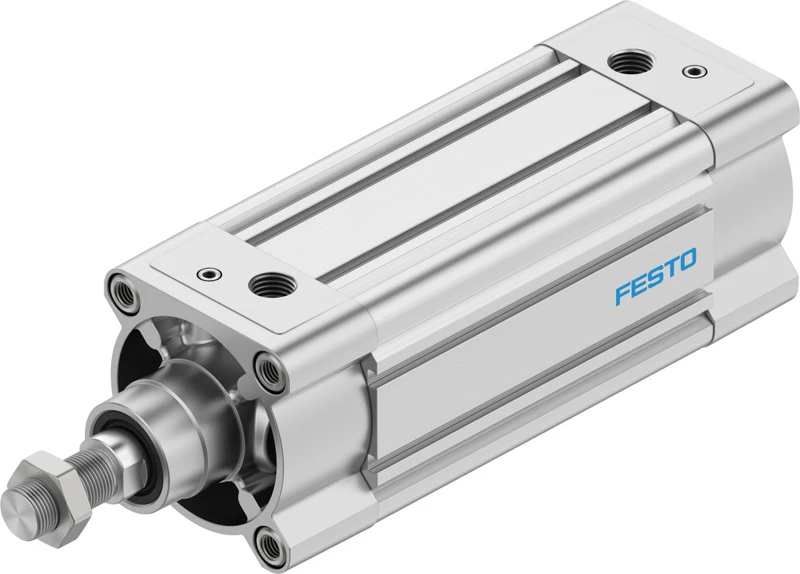

ISO cylinder, DSBC-80-125-D3-PPVA-N3
SKU: 3656640
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBC, ISO 15552, D3 (sensor slots on 3 sides)
• Mode of operation Double-acting
• Piston diameter 80 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 3016 N
• Stroke 125 mm
• Cushioning Pneumatic cushioning, adjustable at both ends
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinder DSBC
• Standards-based profile cylinder to ISO 15552 with a wide variety of mounting options.
• Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
• ISO 15552 (ISO 6431, VDMA 24562)
• Standard profile with two sensor slots
• Wide range of variants for customised applications
• Comprehensive range of mounting accessories for just about every type of installation
• For position sensing
• Variants recommended for production systems for manufacturing lithium-ion batteries
