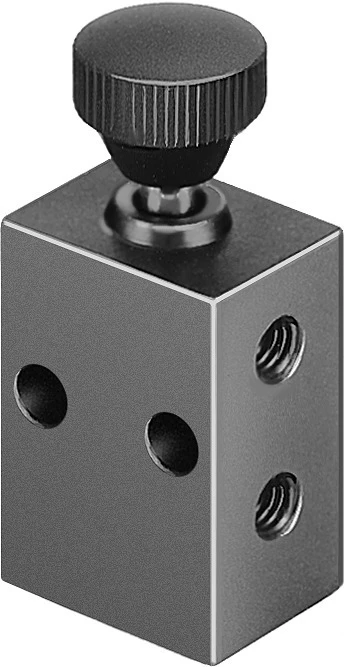

Pushbutton valve, K-3-M5

Specifications • Manually operated valves, Pushbutton valve • Valve function 3/2-way, closed, monostable • Standard nominal flow rate (standardised to DIN 1343) 80 l/min • Pneumatic working port M5 • Operating pressure -0.95 bar ... 8 bar • Design Piston seat • Nominal size 2 mm • Type of piloting Direct • Symbol 00991098 • Explosion protection Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), one 22 (ATEX) • Operating medium Compressed air to ISO 8573-1:2010 [-:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation willalways be required) • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Actuating force 23 N • Product weight 28 g
