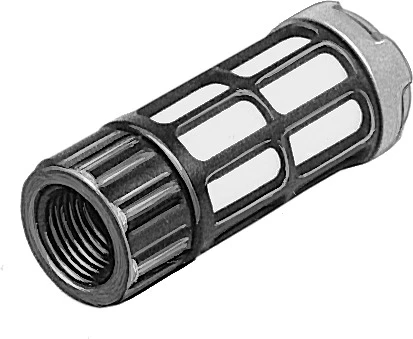

Silencer, U-1/8-I

Specifications • Silencer U • Polymer version, female thread • Mounting position optional • Symbol 00991473 • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar • Flow rate to atmosphere 2050 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible • LABS (PWIS) conformity VDMA24364-B1/B2-L • Sound pressure level 76.5 dB(A) • Ambient temperature -10 °C ... 70 °C • Product weight 3.6 g • Pneumatic connection G1/8 • Material shock absorber insert PE • Note on materials RoHS-compliant
