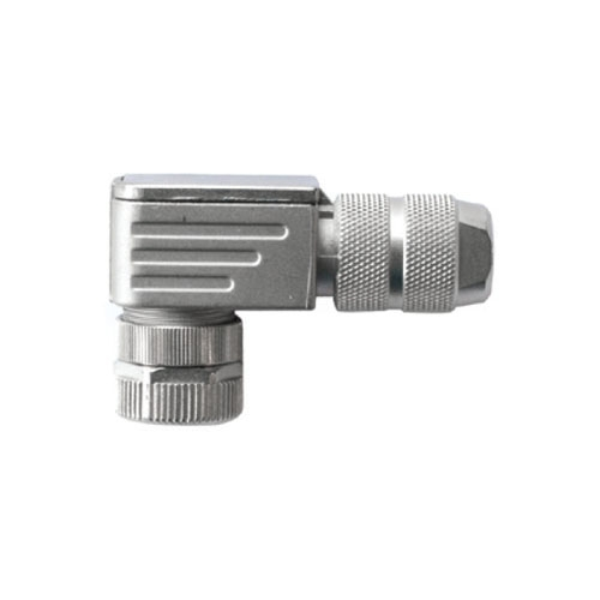

M12 (5 pin) female angled 370678
SKU: 370678
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
M12 female connector:
The Temposonics M12 female connector (5 pin), angled, is compatible with the Temposonics E Series, GB Series, and R-Series models.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: GD-Zn, Ni.
Screw termination, maximum 0.75 mm2.
The contact insert is CuZn.
Cable diameter: 5–8 mm (0.2–0.31 in).
Wire: 0.75 mm2 (18 AWG).
Operating temperature range: -25 to +85 °C (-13 to +185 °F).
Ingress protection: IP67 (when properly installed).
Fastening torque: 0.4 Nm.
