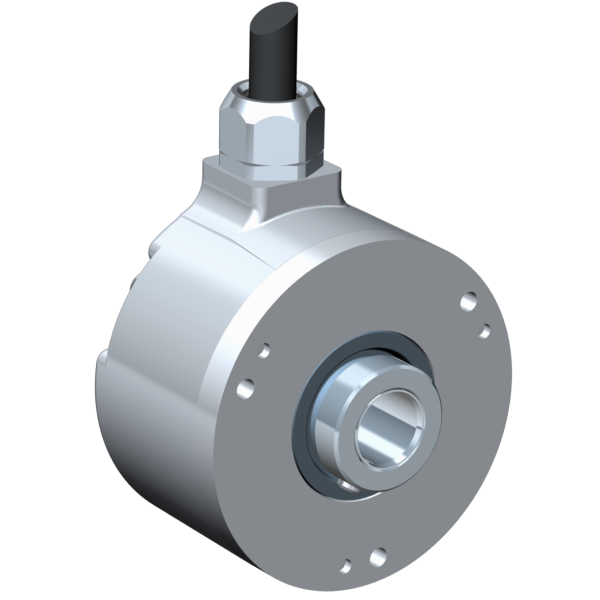

RHI 503 56 HS Ø12 mm 9-30 Vdc HTL Cable Radial 1,5 m 1000 ppr
SKU: 392911-12
Out of stock
* Online sales only
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Pricing available on request
Ruggedized Hollow shaft encoder, Incremental:
Sturdy, Ø58 mm hollow shaft encoder
The outputs are short-circuited and protected.
The housing is IP67, while the shaft inlet is IP66.
Remaining stock can still be purchased. We can quote on an alternative or replacement product.
View recommended replacementRequest a backorder quote. We will confirm price and lead time before payment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: RHI.
Model: 503 Standard.
Shaft type: Ø12 mm blind hollow shaft.
Flange type: 56/57-flange.
Resolution: 1000 ppr.
Power supply: 9-30 Vdc.
Output signal: HTL.
Connection type: Cable.
Connecting direction: Radial.
Cable length: 1.50 m.
Number of channels: 6 (S00, S00\, S90, S90\, Sref, Sref\).
