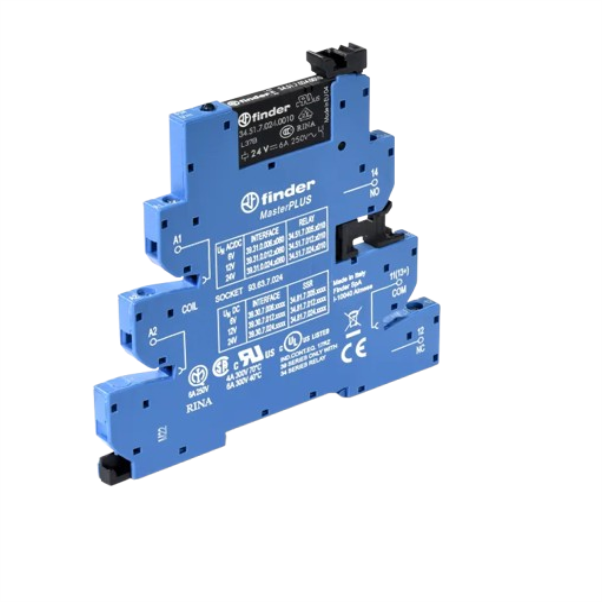

6A 1 CHANGEOVER SLIM RELAY INTERFACE 12VAC/DC
SKU: 393100120060
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Modules for relay interfaces:
39 series slimline Master INTERFACE modules.
Compact 6.2 mm in width.
Easy ejection clip and secure relay retention Integrated LED coil protection and signalling circuit.
16-way jumper link connections (bridging bars).
Buy currently uses Select Automation shop pricing and checkout.
Interface modules for Master PLUS relays:
All-purpose interface suitable for any kind of application.
With an optional 16-way jumper link, a common connection is possible (term A1, A2, 11).
Accepts output fuse module (09363) for simple and compact output circuit protection.
SERIES 39:
DESCRIPTION: Relay interface module
RELAY TYPE: Electromechanical relays.
CURRENT: 6A
CONTACT CONFIGURATON: 1 changeover.
MOUNTING: DIN 35 rail mounting (EN60715)
OPERATING VOLTAGE: 12 VAC/DC
DIMENSIONS (MM): 90.7 x 6.2 x 94.3
