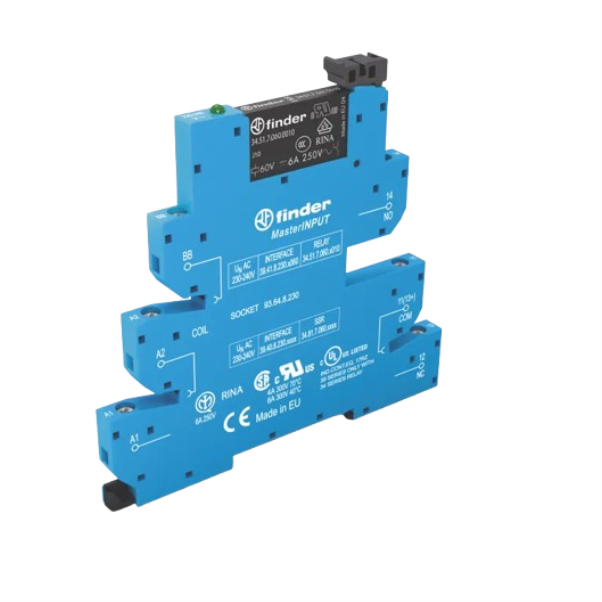

6A 1 CHANGEOVER SLIM RELAY INTERFACE 230VAC,
SKU: 394182305060
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Modules for relay interfaces:
39 series slimline Master Interfaces modules.
Compact 6.2 mm in width.
Easy ejection clip and secure relay retention Integrated LED coil protection and signalling circuit.
16-way jumper link connections (bridging bars).
Buy currently uses Select Automation shop pricing and checkout.
Relay interface module Master INPUT:
Using jumper connectors, supply voltage distribution is quick and simple.
Allows input device termination in its entirety (no extra terminals needed).
Gold-plated output connections provide enhanced suitability for low-power PLC inputs.
Interface between PLCs/controllers and sensors, limit switches, and auxiliary connections.
SERIES 39:
DESCRIPTION: Relay interface module
RELAY TYPE: Electromechanical relays.
CURRENT: 6A
CONTACT CONFIGURATON: 1 changeover.
MOUNTING: DIN 35 rail mounting (EN60715)
OPERATING VOLTAGE: 230 VACS
DIMENSIONS (MM): 90.7 x 6.2 x 94.3
