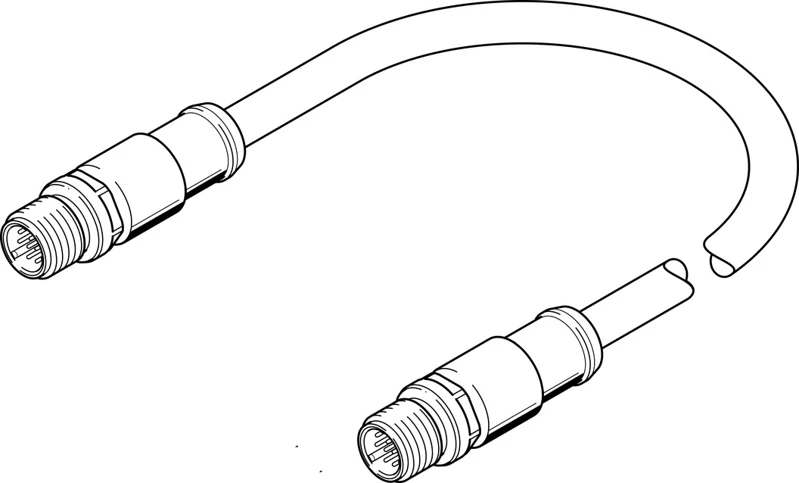

Connecting cable, NEBS-SM12G12-E-0.3-N-M12G12
SKU: 3947404
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Connecting cables NEBS, for sensors
• Connecting cables, plug M12x1, 12-pin
• Cable length 0.3 m
• Conforms to standard EN 61076-2-101
• Cable designation With accessories
• Frequency of connection 100
• Electrical connection 1, function Field device side
• Electrical connection 1, design Round
• Electrical connection 1, connection type Plugs
• Electrical connection 1, cable outlet Straight
• Electrical connection 1, connector system M12x1, A-coded to EN 61076-2-101
• Electrical connection 2, function Controller side
• Electrical connection 2, design Round
• Electrical connection 2, connection type Plugs
• Electrical connection 2, cable outlet Straight
• Electrical connection 2, connector system M12x1, A-coded to EN 61076-2-101
Buy currently uses Select Automation shop pricing and checkout.
Connecting cable NEBS
• For connection with rectangular design L1, grid dimension 5.8 mm
• For thread M12x1 A-coded according to EN 61076-2-101
• For thread M16x0.75
• Connecting cable for pressure sensor SPAN
• Degree of protection IP40, IP65, IP67, IP69K, when mounted
• Cable length 0.5 ... 10 m
• With PVC or PUR cable
• Ambient temperature -40 ... +70 °C
