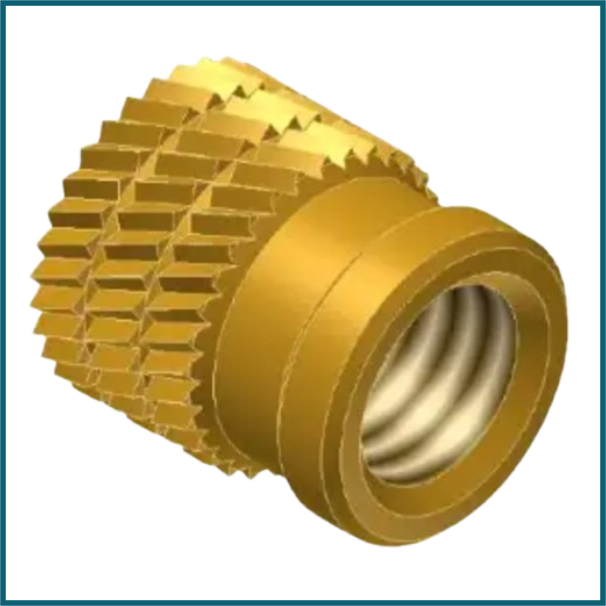

M3 Threaded Inserts
SKU: 3DP-0010-DC1
Sold by Select Automation
Final price R 12.60
R 10.96 excl. VAT
Availability: In Stock (18 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
M3 Threaded Inserts are small metal components with internal M3 threads.
They are embedded into materials like plastic, wood, or soft metals to provide durable and reusable threads for M3 screws.
Commonly used in 3D printing and DIY projects, they improve the strength and longevity of connections, especially in parts subject to frequent assembly and disassembly.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Thread Size: Internal threads for M3 screws (3 mm diameter).
Outer Diameter: 4mm.
Length: 5.5mm.
Material: Brass, stainless steel, or zinc alloy for durability and corrosion resistance.
Installation Method:
Heat-set Inserts: Designed to be melted into plastic using a soldering iron.
Press-fit Inserts: Pressed into a pre-drilled hole.
Thread Type: Metric thread (M3 x 0.5 mm pitch).
Applications:
Used in 3D printed parts, wood, or soft materials to create strong, reusable threads.
Ideal for assemblies requiring repeated screw insertions and removals.
Flange (optional): Some variants have a flange for added stability.
