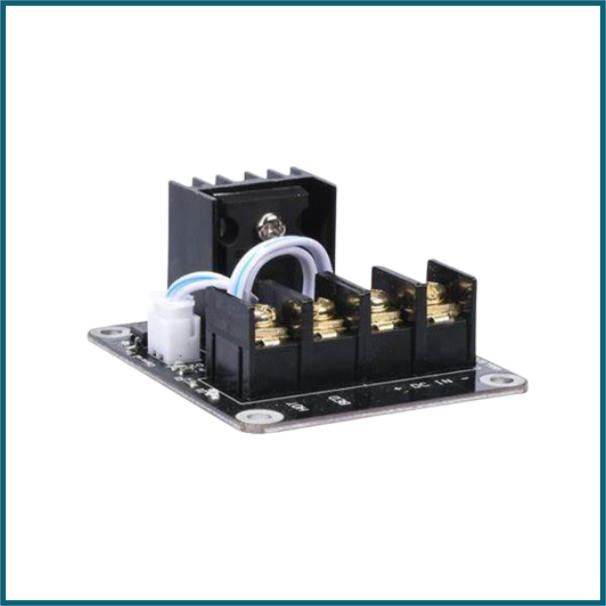

60*50mm Hot Bed Power Module MOS Tube For 3D Printer
SKU: 3DP-0077-P01
Sold by Select Automation
Final price R 66.78
R 58.07 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
This module is intended to handle the high current draw of heated beds in 3D printers.
Standard controller boards often top out at ~15 A, which can lead to overheating or burnt connectors.
Adding this MOSFET module powers the heated bed directly, while the controller transmits a low-current signal.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions: 60 × 50 mm.
Mounting Holes: 3.2 mm diameter (for M3 screws), spacing 54 × 43 mm.
Net Weight: 25 g.
Voltage Range: 12 V – 24 V DC.
Max Current: 25 A.
MOSFET Type: HA210NO6 (high power MOSFET).
Cooling Requirement: Stable operation under 25 A with proper cooling; pulsed duty cycle <50% recommended.
Colour: Black PCB.
Connector Type: Screw terminals for power input/output.
