Linear Motion Ball Bearings Slide Block (SC10UU)
SKU: 3DP-0084-P01
Sold by Select Automation
Final price R 57.03
R 49.59 excl. VAT
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

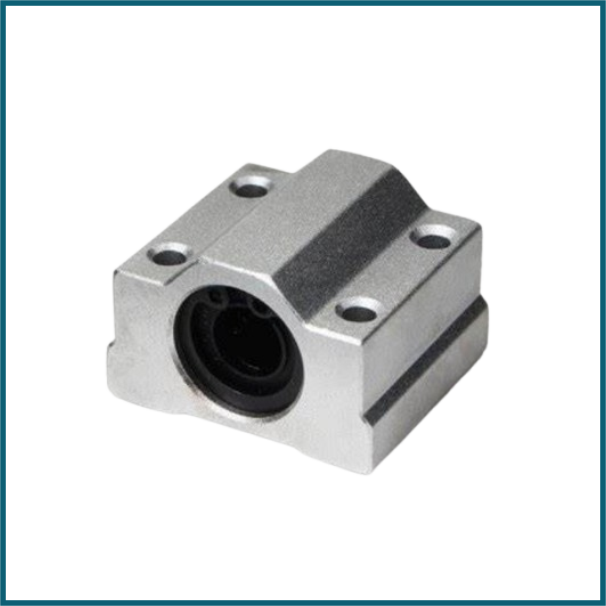

The SC10UU is a pillow-block linear bearing that fits 10mm diameter linear shaft rods.
It combines an aluminium housing with an integrated LM10UU ball bearing to provide smooth, precise linear motion.
This makes it a popular choice for 3D printers, CNC machines, robots, and automation systems that require precision and stability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Bore Diameter (d): 10 mm.
Outer Width (W): 40 mm.
Height (H): 26 mm.
Length (L): 35 mm.
Mounting Hole Size: M5 threaded holes.
Housing Material: Aluminium alloy.
Bearing Type: Linear ball bearing.
Load Ratings:
Dynamic load rating (C): 0.37 kN.
Static load rating (C0): 0.54 kN.
Operating Temperature: −15 °C to +80 °C.
Weight: 90 g (0.09 kg) per block.
