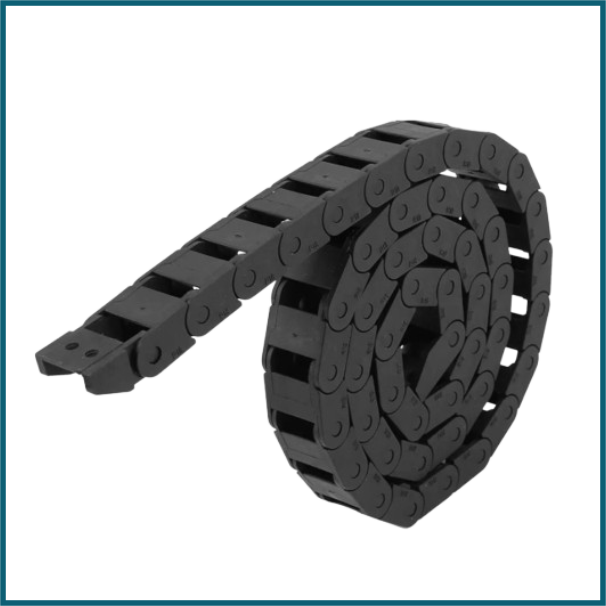

Nylon plastic tank chain 15*20
SKU: 3DP-0095-P01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Nylon Plastic Tank Chain 15×20 is a reliable cable management solution for guiding and protecting electrical wires, pneumatic tubes, and hydraulic hoses in moving machinery and automation systems.
The drag chain, made of high-strength technical nylon, reduces cable twisting, abrasion, and excessive bending, resulting in dependable operation and longer cable life.
This drag chain's internal size of 15mm × 20mm allows for larger cable bundles and tubing, making it ideal for medium-duty motion applications in CNC machines, robotics, and industrial automation equipment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Cable Drag Chain.
Internal Dimensions: 15 × 20 mm.
Material: Reinforced Nylon (PA66).
Chain Type: Openable / Snap-open.
Operating Temperature: -30°C to +80°C.
Mounting Type: Fixed End Brackets.
Bend Radius: 28–35 mm.
Length: supplied per metre.
Application: Cable and hose management.
Typical Applications:
CNC routers and milling machines
3D printers
Laser engraving and cutting machines
Robotics and automation systems
Pick-and-place equipment
Packaging machinery
Sliding tables and gantry systems
Pneumatic and hydraulic hose routing
